Camshaft timing chains, removing from camshafts: Notes

WARNING: This page is about a different car, the 2008 Audi RS 4 and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

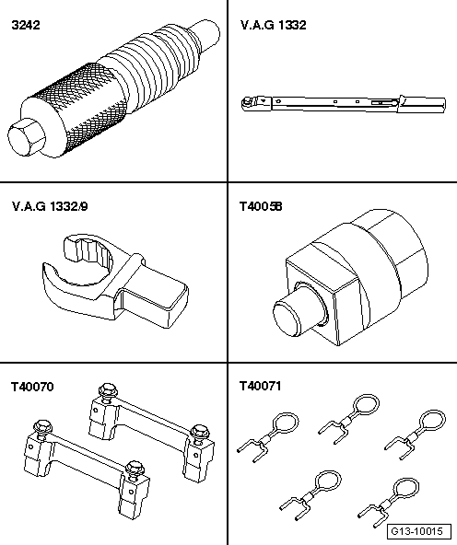

Fig 1: Identifying Special Tools - Camshaft Timing Chains, Removing From Camshafts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Locking pin 3242
Torque wrench V.A.G 1332
Assembly tool V.A.G 1332/9
Adapter T40058

Camshaft locator T40070 (2x)
Securing pin T40071 (2x)

Special tools, testers and auxiliary items required

Fig 2: Adapter T40079

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Adapter T40079
