Right camshaft timing chain

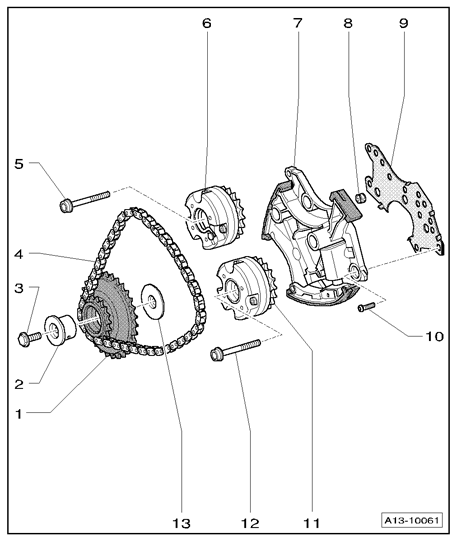

Fig 1: Right Camshaft Timing Chain

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Drive sprocket for right camshaft timing chain

2 - Mounting bracket for drive sprocket

3 - 42 Nm

4 - Right camshaft timing chain

• Before removing, mark direction of rotation with paint. Reversing rotation direction of a used chain can destroy it
• Removing and installing → Camshaft timing chain, removing and installing

5 - Camshaft bolt

• Replace
• Initial tightening torque: 60 Nm
• Final tightening torque: 80 Nm plus an additional 90 ° ( ¹ /₄ turn)

6 - Camshaft adjuster for intake camshaft

• Identification "Intake"
• Removing and installing → Camshaft timing chain, removing and installing

7 - Chain tensioner for right camshaft timing chain

• Removing and installing → Camshaft timing chain, removing and installing

8 - Oil strainer

• Set into chain tensioner
• Installed location: Locating tabs on circumference

9 - Gasket

• Replace
• Clipped onto chain tensioner

10 - 5 Nm plus an additional 90 ° ( ¹ /₄ turn)

• Replace

11 - Camshaft adjuster for exhaust camshaft

• Identification "Exhaust"
• Removing and installing → Camshaft timing chain, removing and installing

12 - Camshaft bolt

• Replace
• Initial tightening torque: 60 Nm
• Final tightening torque: 80 Nm plus an additional 90 ° ( ¹ /₄ turn)

13 - Thrust washer for drive sprocket
