Electric Drive Motor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

As the Electro-Drive Drive Motor -V141- is a component of the transmission, the transmission must first be removed.

De-Energizing High Voltage System

WARNING:

Follow the High Voltage System General Warnings, refer to HIGH VOLTAGE SYSTEM GENERAL WARNINGS .

Turning off the voltage in the high voltage system is carried out exclusively via the Guided Fault Finding on the Vehicle Diagnostic Tester.

CAUTION:

Extremely dangerous high voltage

Electrocution can cause death or very serious personal injury.

The high voltage system may only be turned off by a qualified person (Audi high voltage technician).
It must be certain that the voltage for the high voltage system is turned off. The voltage is guaranteed to be off exclusively with the Vehicle Diagnostic Tester via the "Guided fault finding" .
The qualified technician (Audi high voltage technician) will make sure the voltage is turned off and that the system cannot turn back on again using a Service Disconnect Lock T40262. The qualified technician should make sure the system cannot turn on again by keeping the key and the High Voltage System Maintenance Connector -TW- in a safe place.
The qualified personnel (Audi high voltage technicians) mark the vehicle with a label.

NOTE:

De-energizing the high voltage system:

Connect the Vehicle Diagnostic Tester

Select the Guided Fault Finding mode

Using the Go To button, move through the following menu points

Function/Component Selection

Body

Electrical Equipment

OBD-Capable System

8C - Hybrid Battery Management -J840

8C - Hybrid Battery Management, Functions

51 - De-Energize The High Voltage (Rep-Gr.93)

-- Remove the transmission, refer to TRANSMISSION, REMOVING .

-- Secure the transmission on the Engine And Transmission Holder VAS6095, refer to SECURING ON ENGINE AND TRANSMISSION HOLDER .

Fig 1: Identifying Support Tool 3311, Bolt 3311/1 And Holding Plate VW 309

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left flange shaft, refer to LEFT FLANGE SHAFT, REMOVING AND INSTALLING .

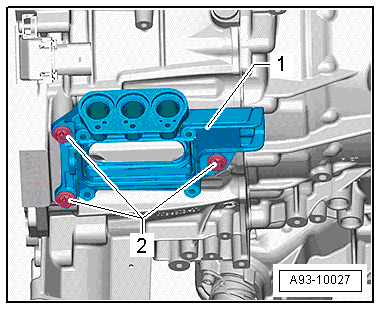

-- Remove the bolt -2- and remove the connection box housing -1- for the high voltage lines from the transmission.

Fig 2: Removing Connection Box Housing For High Voltage Lines From Transmission

Courtesy of AUDI OF AMERICA, LLC

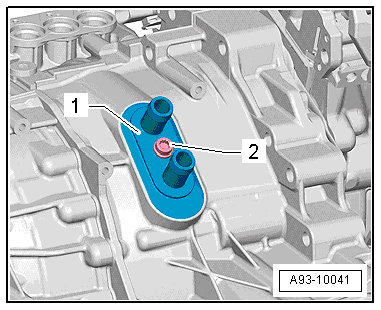

-- Remove the bolt -2- and remove the connection for the coolant lines -1- from the transmission housing.

Fig 3: Removing Connection For Coolant Lines -1- From Transmission Housing

Courtesy of AUDI OF AMERICA, LLC

-- Uncover the high volt connection -1- and the radiator connection -2- on the Electro-Drive Drive Motor -V141- and cap.

Fig 4: Locating Electro-Drive Drive Motor Components

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To improve the image, the illustration shows the Electro-Drive Drive Motor -V141- removed. Apply the transmission connection cap -3- first to the removed Electro-Drive Drive Motor -V141-.

-- Turn the transmission so that the Electro-Drive Drive Motor -V141- is facing vertically upward.

Prepare Transport and Lifting Device:

-- Assemble the Lifting Eyebolt VAS3368 with Slide Hammer Set VW771 with adapter 40 and M8 washer -1-.

Fig 5: View Of Lifting Eyebolt VAS3368 With Slide Hammer Set VW771

Courtesy of AUDI OF AMERICA, LLC

Maximum depth: Dimension X = 8 mm

CAUTION:

Risk of damaging the damper module in the Electro-Drive Drive Motor -V141- !

If the Lifting Eyebolt VAS3368 with Slide Hammer Set VW771 and adapter 40 is screwed in deeper than 8 mm, the damper module in the Electro-Drive Drive Motor -V141- will be damaged.

If the damper module in the Electro-Drive Drive Motor -V141- is damaged, than the Electro-Drive Drive Motor -V141- must be replaced.

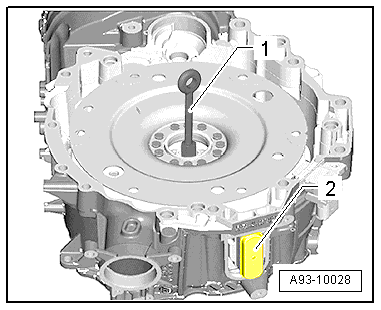

-- Attach the Lifting Eyebolt VAS3368 with the Slide Hammer Set VW771 with adapter 40 and M8 washer -1- above in the Electro-Drive Drive Motor -V141-.

Fig 6: Installing VAS 3368 And VW 771 With Adapter 40 And Washer M8 -1- Above In Electro-Drive Drive Motor

Courtesy of AUDI OF AMERICA, LLC

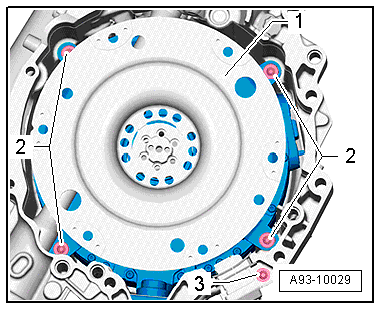

-- Remove the bolt -3- on the Drive Motor Rotor Position Sensor 1 -G713-.

Fig 7: Removing Bolt -3- On Drive Motor Rotor Position Sensor 1 -G713-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2- on the Electro-Drive Drive Motor -V141- -1-.

-- Carefully remove the Electro-Drive Drive Motor -V141- vertically out of the transmission using the Shop Crane VAS6100.

Fig 8: Locating Electro-Drive Drive Motor Components

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging the Electro-Drive Drive Motor -V141- !

The Drive Motor Rotor Position Sensor 1 -G713- and the high volt connection and cap -1- must not hit the transmission housing when removing.

-- Make sure that no cold water drips into the opening for the input shaft, cover the opening if necessary.

-- Make sure that all of the caps are installed.

High volt connection cap
Radiator connection caps
Transmission connection cap

-- Carefully set down the Electro-Drive Drive Motor -V141-.
