Rear Lid, Adjusting: Notes

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Gauge - Gap Adjustment 3371

Gap Dimensions

All rear lid measurements are given in mm with a ± 0.5 mm tolerance.

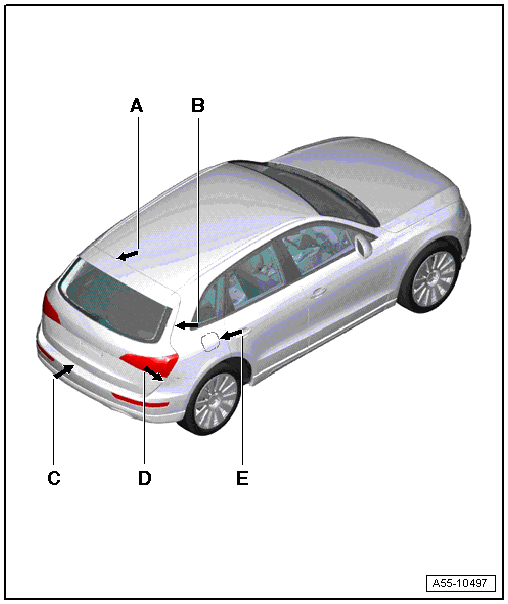

Fig 1: Identifying Rear Lid, Adjusting

Courtesy of AUDI OF AMERICA, LLC

Dimension -A- = 4.5 mm
Dimension -B- = 4.5 mm
Dimension -C- = 5.0 mm
Dimension -D- = 4.5 mm
Dimension -E- = 2.2 mm all around
Make sure the gap is parallel to the body.

NOTE:

The gas-filled struts must be installed before adjusting a new rear lid.

Adjusting with Striker Pin

NOTE:

Before adjusting, install adjusting buffer on rear lid side completely.

Fig 2: Identifying Striker Pin -2- & Nuts -1-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen combination nuts -1-, the striker pin -2- must be able to move.

-- Note different versions.

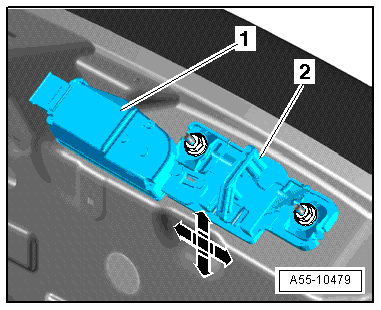

Fig 3: Identifying Striker Pin -2- With Motor For Closing Aid -1- & Screws

Courtesy of AUDI OF AMERICA, LLC

-- Loosen combination screws, striker pin -2- with motor for closing aid -1- must be adjustable.

-- For easier installation, there are markings on rear cross panel you can use to adjust the striker pin.

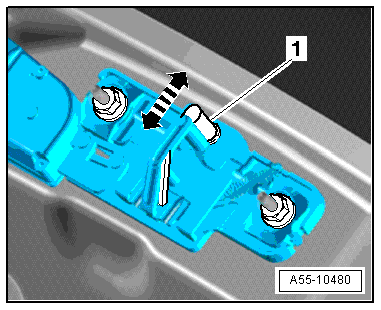

Fig 4: Upper and Lower Striker Pin End Position

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

To adjust rear lid, closing aid motor must be in >>lid closed << position (lower end position).
Striker pin cannot be installed in position not visible in drawing (upper end position) -1- because rear lid can contact block when closing and be damaged.
Do not use the closing assist motor to adjust rear lid.

-- Turn the upper section of the rear lid side of the adjusting buffer completely before adjusting the rear lid. Refer to Figure.

-- Tighten the nuts -1- hand-tight.

Fig 5: Identifying Striker Pin -2- & Nuts -1-

Courtesy of AUDI OF AMERICA, LLC

-- Close rear lid and align with body contour.

-- The rear lid lock must be engaged in the main detent (2nd lug) during this.

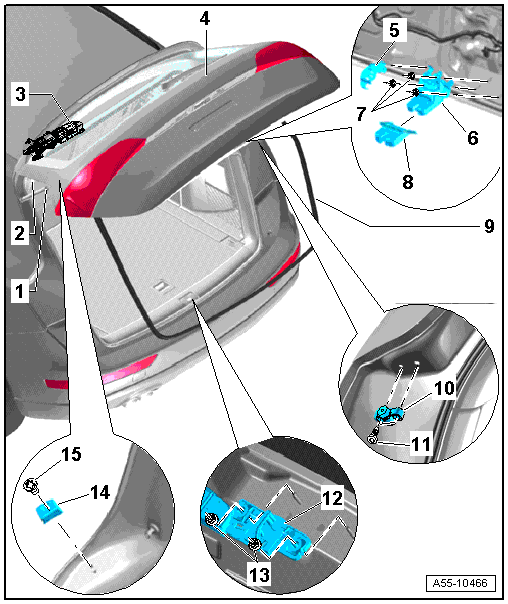

-- Open the rear lid in this position and tighten the nuts -1- to the tightening specification. Refer to -item 13- Nut (See Figure).

Fig 6: Identifying Striker Pin With Closing Aid

Courtesy of AUDI OF AMERICA, LLC

-- If the same striker pin is reinstalled, mark this location before removing.

NOTE:

Striker pin with closing aid can only be installed in >>lid closed << position, same as delivery condition for a new part.

If the same rear lid catch is going to be installed again, open the rear lid and lock the rear lid latch or the rotary latch with a screwdriver.

Closing aid runs in >>lid closed << position = basic position.

Now remove connector from closing aid and rear lid lock can be opened again by activating grip piece in rear lid.

-- Tighten the nuts -1- just loosely.

-- Close the rear lid and align it with the body contour.

-- The rear lid lock must be engaged in the main detent (2nd lug) during this.

-- In this position, open the rear lid and tighten the nuts -1- to the tightening specification. Refer to -item 13- Nut (See Figure).

-- Tighten the screws -2- for the stop on the body -1- to the tightening specification. Refer to -item 11- Bolt (See Figure).

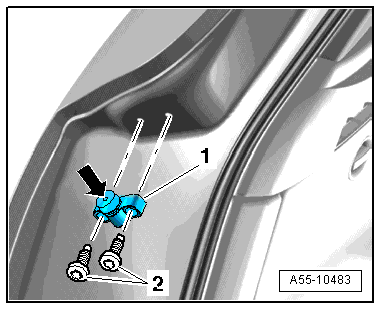

Fig 7: Identifying Stop On Body & Screws

Courtesy of AUDI OF AMERICA, LLC

-- Turn the adjusting buffer -arrow- just enough until the closed rear lid with stop buffer on rear lid side makes contact with the stop.

-- See if rear lid still closes easily, continue adjusting the adjusting buffer if necessary.

-- If rear lid is difficult to close, tighten the adjusting buffer slightly.
