Adjustment Buffer Installation Position

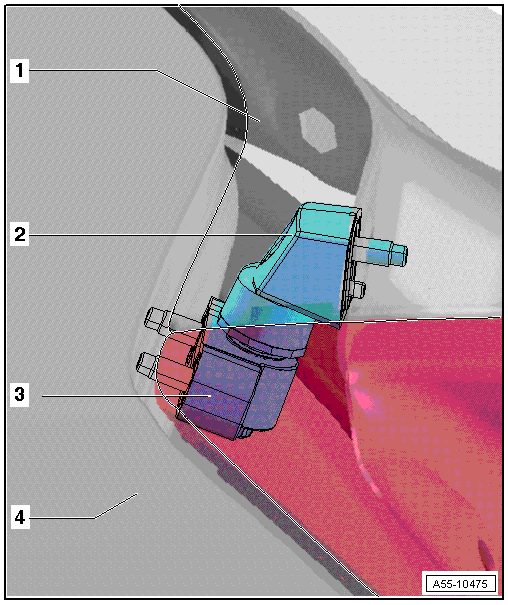

Fig 1: Adjustment Buffer Installation Position

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid
   • When adjusted correctly, adjusting buffer -3- must contact stop buffer -2- with light pretension when rear lid is closed.
2. Stop, Rear Lid Side
   • Installation, refer to Fig 3
   • Tighten screws to 8 Nm when installing.
3. Adjustment Buffer, Body Side
   • Adjustment buffer secured on body-side with bolts
   • Tighten screws to 8 Nm when installing.
   • There is an adjusting screw for adjusting the height.
   • When rear lid is adjusted correctly, adjusting buffer must make contact with light pre-tension with stop on rear lid side.
4. Side Panel

Fig 2: Identifying Adjustment Screw/Buffer And Protective Cap

Courtesy of AUDI OF AMERICA, LLC

-- Before adjusting rear lid, install adjusting screw -2- with protective cap -1- completely in adjusting buffer -3-

-- Remove the adjusting screw -2- just enough until the cap -1- makes contact with light pre-tension with stop on rear lid side when the rear lid is closed.

-- Check whether lid sits without play and in flush position by pushing or pulling on the side edge of rear lid below rear window.

-- Repeat the adjustment if necessary.

Fig 3: Lid Side Upper Stop

Courtesy of AUDI OF AMERICA, LLC

-- When installing stop -2- tighten screw -1- to 8 Nm.

-- Height adjustment is carried out using adjusting buffer on body side.

Fig 4: Lid Side Lower Stop

Courtesy of AUDI OF AMERICA, LLC

-- To remove, bore out the rivet heads, drive out the rivet shafts and remove the lid.

-- When correctly adjusted, the adjusting buffer just contacts the lower stop on the body side; if necessary adjust the buffer.

Fig 5: Body Side Stop

Courtesy of AUDI OF AMERICA, LLC

-- Install the stop -1- into the blind rivet nut -2- until it fits securely.

-- The internally threaded pop rivet must fit flat when installed.
