Motor In Rear Lid Control Module - V375-, Installing In Hinge
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

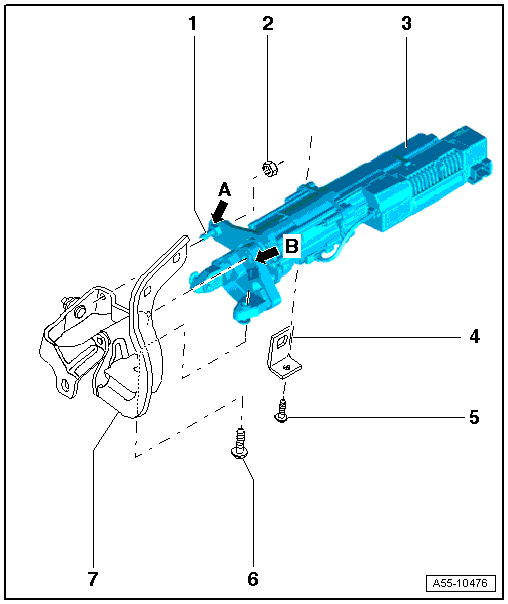

- Hex Head Eccentric BoltsNOTE:
Upon tightening locking nuts, eccentric bolts are braced in hinge with no play.
For this reason, you cannot counterhold eccentric bolt hex head with an open end wrench when tightening locking nuts.
When removing drive unit, this tension is released with a small turn to the right on eccentric bolt hex head, after you have loosened locking nuts.
- Lock Nut
- 6 Nm
- Before removing drive unit, loosen lock nuts on eccentric bolts.
- Release eccentric bolt tension in hinge arm by rotating hex head to right, if necessary.
- Self-locking
- Rear Lid Drive Motor
- When installing, insert sideways with socket -arrow B- and loose eccentric bolts -arrow A- in hinge.NOTE:
Drive unit socket must fit flat against hinge axle collar.
- The drive unit arm then moves correctly on the hinge arm -7-.
- Tighten the screw -5- to the tightening specification to attach the drive unit to the bracket -4-.
- Tighten the locking nuts -2- to the tightening specification
- Tighten the screw -6- to the tightening specification
- When installing, insert sideways with socket -arrow B- and loose eccentric bolts -arrow A- in hinge.

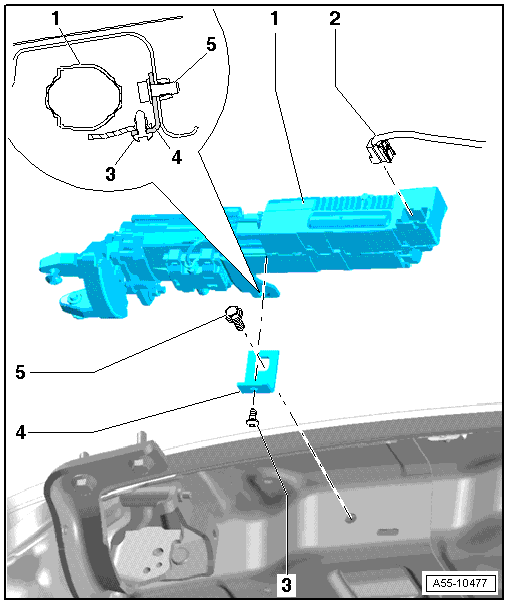

- BracketNOTE:
Bracket is positioned with a device in factory and should not be adjusted.
If bracket must be replaced, for example, when doing repairs after an accident, proceed as follows, refer to -item 4- Bracket (See Figure).
- Bolt
- 8 Nm
- Bolt
- 11 Nm
- Self-threading, must be replaced after removal,
- Lid Hinge
