Lid Latch, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

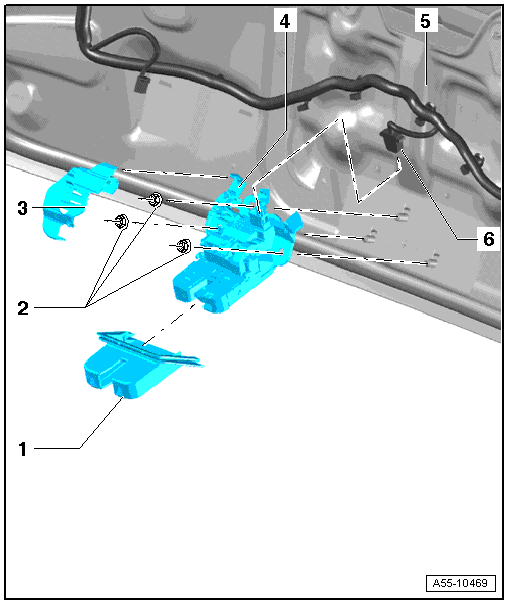

Fig 1: Rear Lid Lock
GWWA55-10469Courtesy of AUDI OF AMERICA, LLC
  1. Cover for Lid Lock
    • When assembling, cover must engage audibly into lid lock.
    • Mount the cover on the rear lid lock.
  2. Nuts
    • 21 Nm
  3. Cover
    • Mount the cover on the lock until it audibly clicks into place.
  4. Lid Latch

    -- Remove the cover for the rear lid lock.

    • Remove rear lid trim. Refer to ROOF END STRIP, REMOVING AND INSTALLING

      -- Remove the cover -3-.

      -- Disconnect the connector for the rear lid lock.

      -- Remove the nuts -2- and then remove the rear lid lock.

  5. Rear Lid
  6. Connector
