Gas-Filled Strut, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

After completely removing gas-filled strut, ensure correct position when installing.

Noise insulation component must be installed on the body side.

Fig 1: Identifying Retaining Spring, Screw Driver, And Gas-Filled Strut

Courtesy of AUDI OF AMERICA, LLC

-- Remove retaining spring -2- with small screwdriver -1- and disengage gas-filled strut -3-, that can finally be removed from ball stud.

Installing

Install in reverse order of removal. Note the following:

-- To install, press gas-filled strut onto ball head pins so that it engages in position.

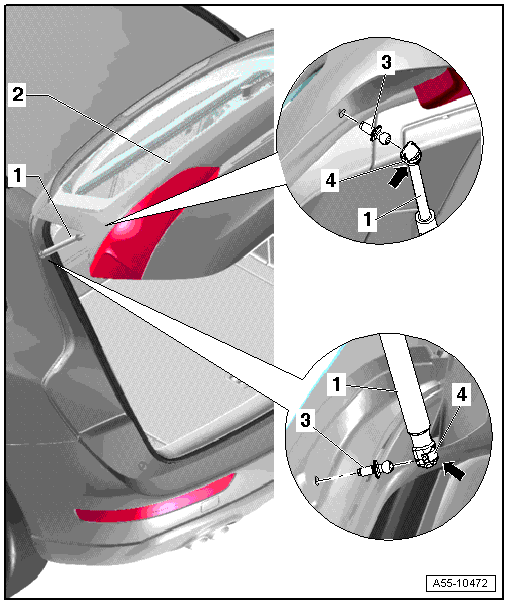

-- Ball head pin tightening specification. Refer to -item 3- Ball Stud (See Figure).
