Hood, Adjusting
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Gauge - Gap Adjustment 3371

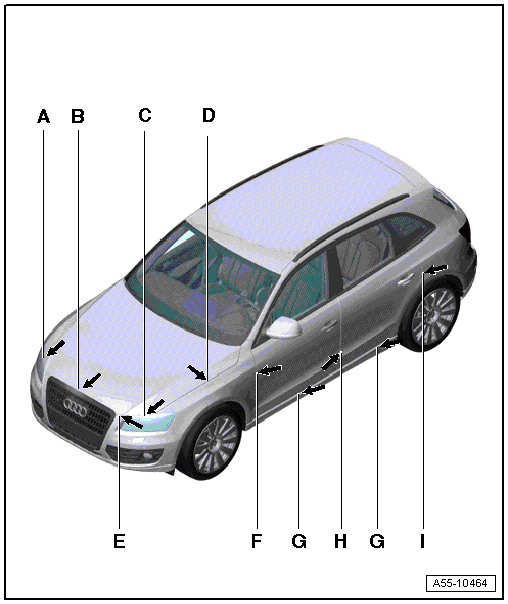

Hood Gap Dimensions
- Dimension -A- = 5.0 mm
- Dimension -B- = 4.5 mm
- Dimension -C- = 5.0 mm
- Dimension -D- = 3.0 mm
- Dimension -E- = 4.5 mm

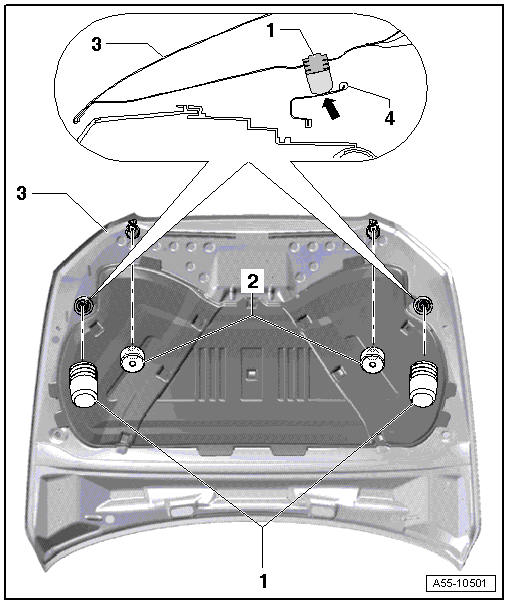

Height Adjustment Stop Buffer
- Adjusting Buffer
- Use for adjusting the height on the front side.
- The adjusting buffer -2- must lightly contact the lock carrier when the hood is closed.
- Spacer
- The rubber buffers -1- function as a strike guard must not contact the lock carrier when the hood is closed.
- Hood
- Lock Carrier
