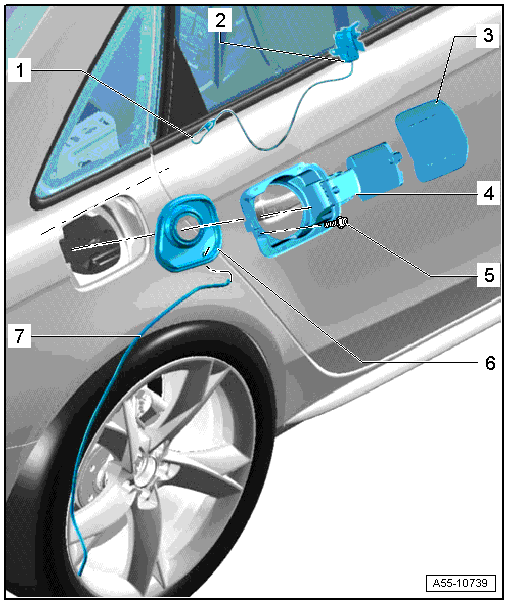

Overview - Fuel Filler Door Unit: Notes
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If removed, the tank flap must be replaced.
- Emergency Release Cable
-- Guide cable through opening in fuel filler door cup.
- Fuel Filler Door Unlock Motor -V155-
- Removing:
-- The fuel filler door is removed.
-- Pull the Comfort System Central Control Module -J393- into the luggage compartment and pull it forward.
-- Remove the Fuel Filler Door Unlock Motor -V155- forward off the body flange and disconnect the electrical connector.
- Installing:
-- Slide the Fuel Filler Door Unlock Motor -V155- onto the flange and slide the emergency release into the luggage compartment.
- Removing:
- Fuel Filler Door Cover
- Removing. Refer to FUEL FILLER DOOR COVER, REMOVING AND INSTALLING .
- Fuel Filler Door
-- Insert fuel filler door diagonally until catches on protruding flange engage in side panel.
-- Bolt the door and the door release motor together using the bolt -4-.
- Bolt
- 1.7 Nm
- Fuel Filler Door Cup
- Drain Hose
- Do not bend.
