Upper Timing Chain Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the connector from Camshaft Adjustment Valve 1 -N205- -1-.

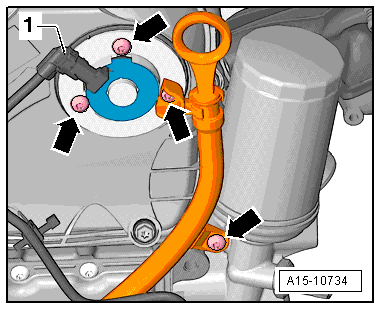

Fig 1: Camshaft Adjustment Valve 1 -N205-, Harness Connector
GWWA15-10734Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and then the Camshaft Adjustment Valve 1 -N205-.

-- Remove the bolts -1 through 5- and the upper timing chain cover.

Fig 2: Identifying Upper Timing Chain Cover - Tightening Sequence
GWWA15-10430Courtesy of AUDI OF AMERICA, LLC
