Upper Timing Chain Cover, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

NOTE:

Replace the O-ring.

-- Coat the seal and the O-ring with engine oil.

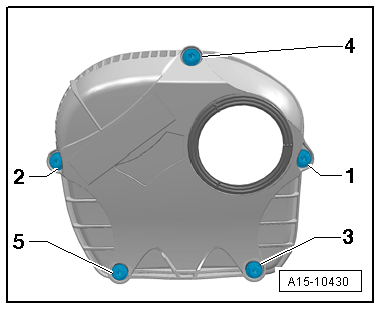

-- Install the timing chain upper cover, tightening sequence, refer to Figure.

-- Install the Camshaft Adjustment Valve 1 -N205-, refer to Camshaft Adjustment Valve 1 -N205-, REMOVING AND INSTALLING .

-- Install the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .
