Cylinder Head, Removing And Installing: Installing

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

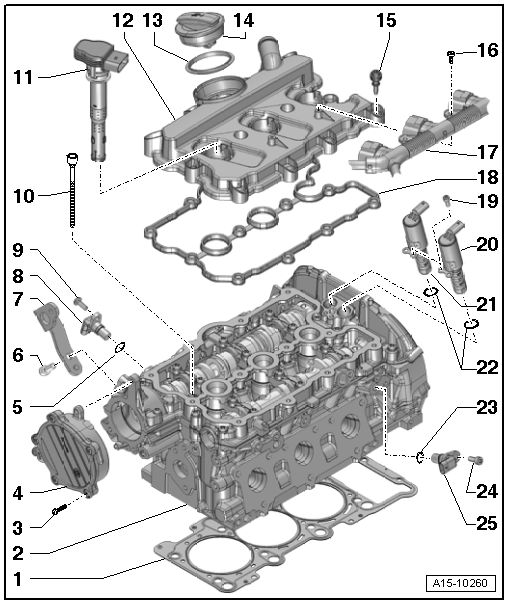

Tightening specifications, refer to OVERVIEW - CYLINDER HEAD .

CAUTION:

The sealing surfaces could be damaged.

Carefully remove sealant residue from cylinder head and cylinder block.
Make sure that no long scrapes or scratches result.

Risk of damaging cylinder block.

There must be no oil or coolant in the blind holes for the cylinder head bolts in the cylinder block.

Risk of cylinder head seal leaking.

Carefully remove all grinding and sanding residue.
Only unpack new cylinder head gasket immediately prior to installation.
To prevent cylinder head seal silicone layer and recessed area from being damaged, always handle seal extremely carefully.

Risk of damaging open valves.

If a replacement cylinder is installed, only remove plastic base right before cylinder head is installed to protect open valves.

Risk of damaging valves and piston heads after working on valve train.

To ensure valves do not strike pistons when starting, carefully rotate engine at least two full revolutions.

NOTE:

Replace the bolts which are being tightened with an additional turn.

Replace self-locking nuts, sealing rings, seals and O-rings.

Note different sealant for cylinder head sealing surfaces and bolts.

If a replacement cylinder is installed, the contact surfaces between the hydraulic adjusting elements, roller rocker levers and cam running surfaces must be lubricated before installing the cylinder head cover.

Secure all hose connections with hose clamps of the same type as those equipped by the factory .

The engine oil and coolant must be changed if the cylinder head or cylinder head seal are replaced.

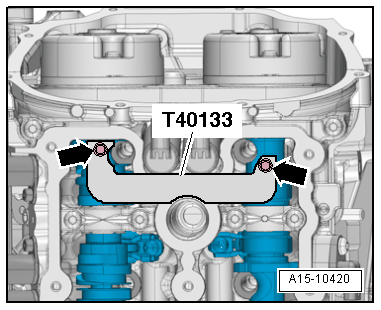

-- Before installing the cylinder head, set the crankshaft and camshafts to "Top Dead Center (TDC)" and install the Camshaft Clamp T40133 on both cylinder heads and tighten to 25 Nm -arrows-.

Fig 1: Before Installing Cylinder Head, Set Crankshaft And Camshafts To "TDC"

Courtesy of AUDI OF AMERICA, LLC

The Camshaft Clamp T40133 is correctly positioned when the holes for the cylinder head bolts remain free.

Crankshaft Locking Pin T40069 must be screwed into the crankshaft.

Fig 2: Crankshaft Locking Pin T40069
Courtesy of AUDI OF AMERICA, LLC

-- Set cylinder head gasket in place.

Fig 3: Identifying Alignment Bushings In Cylinder Block -Arrows-

Courtesy of AUDI OF AMERICA, LLC

Pay close attention to centering pins -arrows- in cylinder block.
Cylinder head gasket installation position: "oben" (top) marking or part number toward cylinder head.

-- Set The Cylinder Head In Place .

Left Cylinder Head

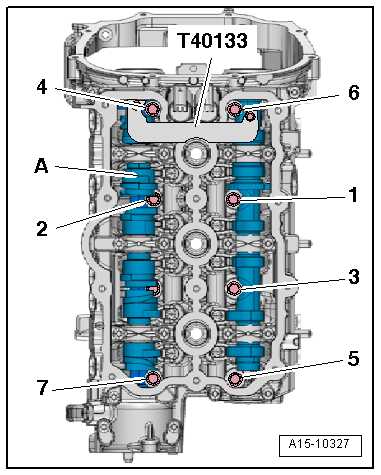

Fig 4: Identifying Unloaded Camshaft Slider & Bolts (Left Cylinder Head)

Courtesy of AUDI OF AMERICA, LLC

-- Insert the bolts -1 through 7- while sliding the unloaded camshaft slider -A- accordingly.

-- Tighten the bolts in 3 steps following the sequence -1 to 7-, refer to -item 10- Bolt (See Figure).

Right Cylinder Head

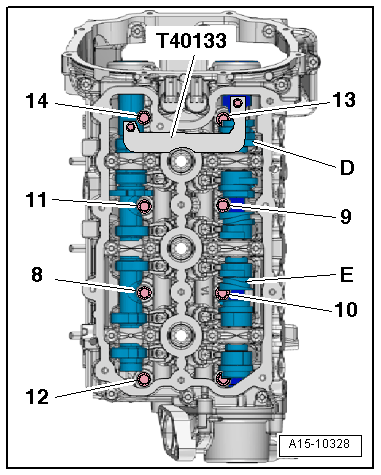

Fig 5: Identifying Unloaded Camshaft Slider & Bolts (Right Cylinder Head)

Courtesy of AUDI OF AMERICA, LLC

-- Insert the bolts -8 through 14- while sliding the unloaded camshaft sliders -D and E- accordingly.

-- Tighten the bolts in 3 steps following the sequence -8 to 14-, refer to -item 10- Bolt (See Figure).

Continuation for Both Cylinder Heads

Fig 6: Identifying TDC With Special Tool Adapter T40058

Courtesy of AUDI OF AMERICA, LLC

-- Position the camshaft timing chain on the camshafts, refer to INSTALLING .

-- Remove the Camshaft Clamp T40133 and the Crankshaft Locking Pin T40069.

-- Turn the crankshaft one full revolution (360°) in the direction of engine rotation -arrow- using the Crankshaft Socket T40058.

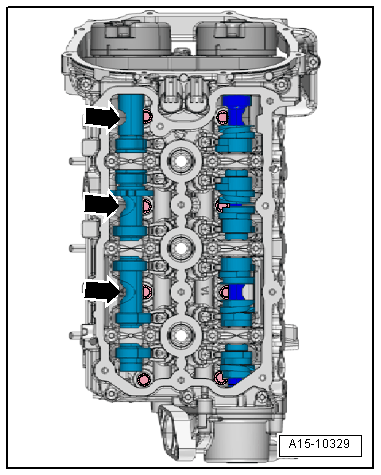

The openings -arrows- on the exhaust camshafts must face toward the outer side of the engine.

Fig 7: View Of Exhaust Camshafts Recesses -Arrow-
Courtesy of AUDI OF AMERICA, LLC

Left Cylinder Head

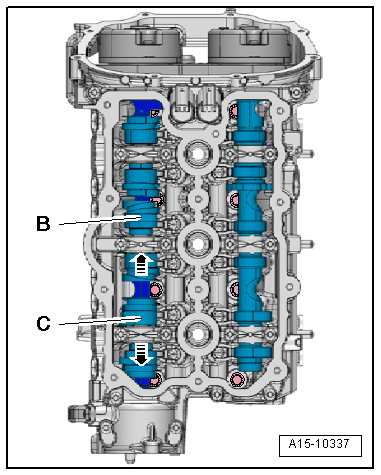

Fig 8: Slide Unloaded Camshaft Sliders As Far As The Stop In Direction Of -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Slide the unloaded camshaft sliders -B and C- as far as the stop in the direction of the -arrow-.

Right Cylinder Head

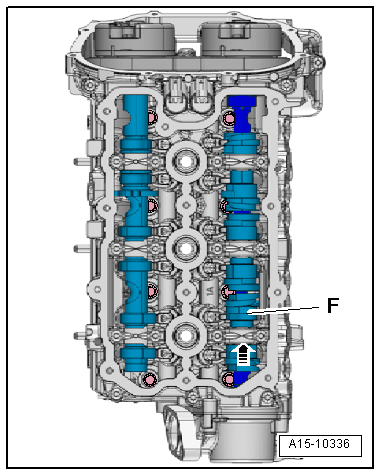

Fig 9: Slide Unloaded Camshaft Slide As Far As Stop In Direction

Courtesy of AUDI OF AMERICA, LLC

-- Slide the unloaded camshaft slider -F- as far as the stop in direction of -arrow-.

Continuation for Both Cylinder Heads

Fig 10: Identifying TDC With Special Tool Adapter T40058

Courtesy of AUDI OF AMERICA, LLC

-- Turn the crankshaft one full revolution (360°) in the direction of engine rotation -arrow- using the Crankshaft Socket T40058.

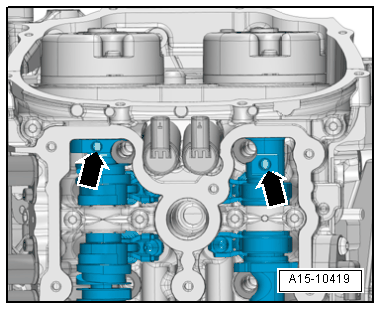

The threaded holes -arrows- in the camshafts must face upward.

Fig 11: Identifying Camshaft Threaded Hole Alignment
Courtesy of AUDI OF AMERICA, LLC

Left Cylinder Head

Fig 12: Identifying Cylinder Head Bolt -15- (Left Cylinder Head)

Courtesy of AUDI OF AMERICA, LLC

-- Insert the bolt -15- and tighten it in 3 steps, refer to -item 10- Bolt (See Figure).

Right Cylinder Head

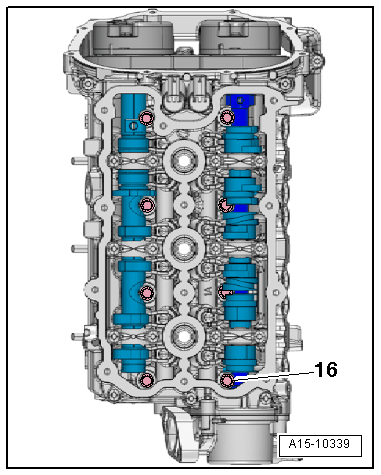

Fig 13: Identifying Cylinder Head Bolt -16- (Right Cylinder Head)

Courtesy of AUDI OF AMERICA, LLC

-- Insert the bolt -16- and tighten it in 3 steps, refer to -item 10- Bolt (See Figure).

Continuation for Both Cylinder Heads

Fig 14: Turning Crankshaft

Courtesy of AUDI OF AMERICA, LLC

-- Turn the crankshaft one full revolution (360°) in the direction of engine rotation -arrow- using the Crankshaft Socket T40058.

The openings -arrows- on the exhaust camshafts must face toward the outer side of the engine.

Fig 15: View Of Exhaust Camshafts Recesses -Arrow-
Courtesy of AUDI OF AMERICA, LLC

Left Cylinder Head

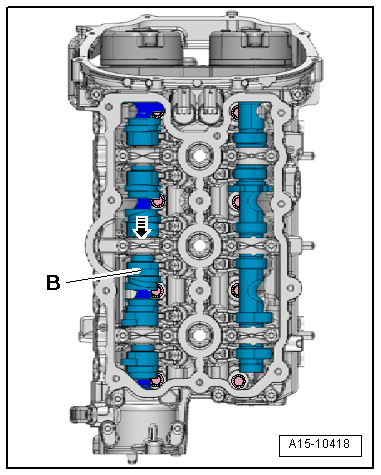

Fig 16: Slide Unloaded Camshaft Slider As Far As Stop In Direction Of -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Slide the unloaded camshaft slider -B- as far as the stop in direction of -arrow-.

Right Cylinder Head

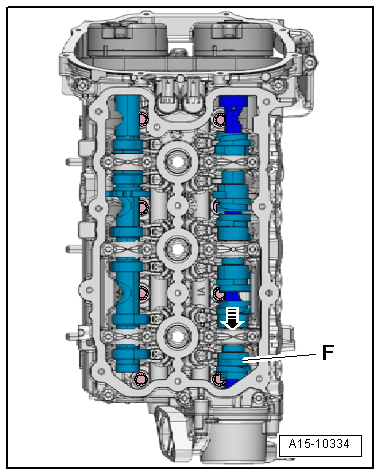

Fig 17: Slide Unloaded Camshaft Sliders As Far As The Stop In Direction Of -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Slide the unloaded camshaft slider -F- as far as the stop in direction of -arrow-.

Continuation for Both Cylinder Heads

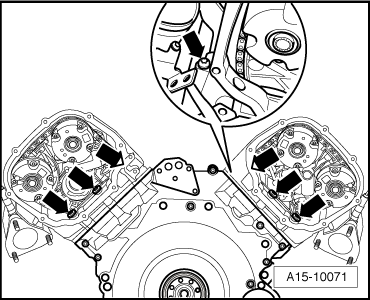

Fig 18: Identifying Bolts At Rear Of Cylinder Head

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -arrows-.

Left cylinder head: 3 bolts.
Right cylinder head: 4 bolts

NOTE:

Do not tighten the cylinder head bolts.

Install in reverse order of removal. Note the following:

-- Install oil dipstick guide tube, refer to Figure.

-- Position the camshaft timing chain on the camshafts, refer to INSTALLING .

-- Install the cylinder head cover, refer to LEFT CYLINDER HEAD COVER, REMOVING AND INSTALLING , refer to RIGHT CYLINDER HEAD COVER, REMOVING AND INSTALLING .

-- Install front coolant pipe, refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .

-- Install the power steering pump, refer to POWER STEERING PUMP, REMOVING AND INSTALLING, VEHICLES WITH DYNAMIC STEERING or POWER STEERING PUMP, REMOVING AND INSTALLING, VEHICLES WITHOUT DYNAMIC STEERING .

-- Install the front muffler, refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Install the fuel supply line (refer to OVERVIEW - HIGH PRESSURE PUMP and the lower section of the intake manifold, refer to INTAKE MANIFOLD LOWER SECTION WITH FUEL RAIL, REMOVING AND INSTALLING ).

-- Install the ribbed belt, refer to RIBBED BELT, REMOVING AND INSTALLING .

-- Install the upper coolant pipe, refer to UPPER COOLANT PIPE, REMOVING AND INSTALLING .

-- Change the engine oil, refer to ENGINE OIL, DRAINING/EXTRACTING; OIL FILTER, REPLACING .

-- Replace the coolant, refer to COOLANT, DRAINING AND FILLING .
