Timing Mechanism Drive Chain, Removing And Installing: Installing

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Tightening specifications, refer to OVERVIEW - TIMING MECHANISM DRIVE CHAIN .

Install in reverse order of removal. Note the following:

NOTE:

Replace the bolts which are being tightened with an additional turn.

-- Position the timing mechanism drive chain according to the markings made on the drive chain sprockets during removal.

-- Install the guide rail and tighten the bolts -1-.

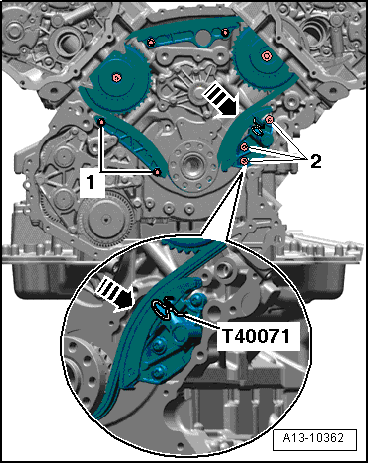

Fig 1: Identifying Bolts And Chain Tensioner

Courtesy of AUDI OF AMERICA, LLC

-- Install the chain tensioner and tighten the bolts -2-.

-- Press the drive chain tensioner guide rail in direction of -arrow- and pull Locking Pin T40071 out of the chain tensioner.

-- Install the power take-off drive chain, refer to POWER TAKE-OFF DRIVE CHAIN, REMOVING AND INSTALLING .

-- Position the camshaft timing chain on the camshafts, refer to INSTALLING .

-- Install the lower timing chain cover, refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .
