Overview - Charge Air System, Vehicles With Engine Code CGQB
WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

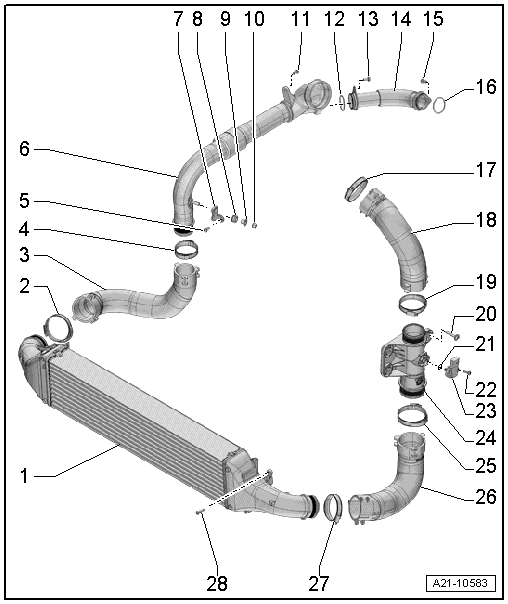

- Charge air cooler
- Removing and installing, refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Hose clamp
- Tightening specification Figure.
- Air guide hose
- Must be free of oil and grease before installing
- Hose clamp
- Tightening specification Figure.
- Bolt
- 9 Nm
- Right Air Guide Pipe
- From the turbocharger
- Bracket
- Grommet
- Sleeve
- Nut
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Replace
- Bolt
- 9 Nm
- Intermediate Pipe
- From the turbocharger
- Bolt
- 9 Nm
- O-Ring
- Replace
- Hose clamp
- Tightening specification Figure.
- Air guide hose
- To the intake manifold
- Must be free of oil and grease before installing
- Hose clamp
- Tightening specification Figure.
- Bolt
- 9 Nm
- O-Ring
- Replace
- Bolt
- 5 Nm
- Charge Air Pressure Sensor -G31- / Intake Air Temperature Sensor -G42-
- Removing and installing, refer to Charge Air Pressure Sensor -G31 - / Intake Air Temperature Sensor -G42-, REMOVING AND INSTALLING .
- Left air guide pipe
- Hose clamp
- Tightening specification Figure.
- Air guide hose
- Must be free of oil and grease before installing
- Hose clamp
- Tightening specification Figure.
- Bolt
- 7 Nm
