Lower Timing Chain Cover, Tightening Specifications and Sequence

WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Tighten the bolts in seven steps as follows:

Steps 1, 2:

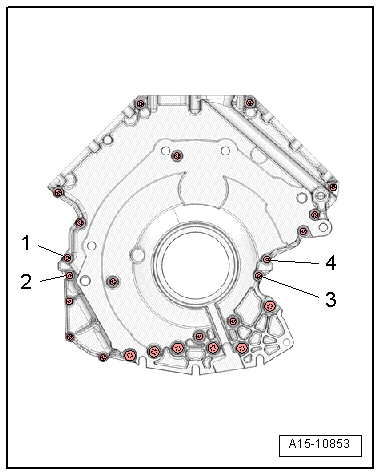

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

Step	Bolts	Tightening Specification
1.		Attaching the timing chain guard lower section with the sealant and the sealing pieces to the cylinder block
2.	-1, 2, 3, and 4-	9 Nm

Step: 3 to 6:

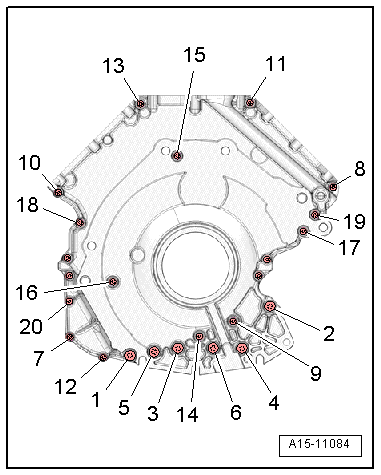

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

Step	Bolts	Tightening Specification/Additional Turn
3.	-1 to 20-	3 Nm
4.	-1 to 6-	8 Nm
5.	-1 to 6-	Tighten an additional 90°
6.	-7 to 20-	9 Nm

Step 7:

Fig 3: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

Step	Bolts	Tightening Specification
7.	-1, 2, 3, and 4-	9 Nm
