Cylinder Head, Removing, Vehicles With Engine Code CPNB: Notes

Special tools and workshop equipment required

• Hose Clip Pliers VAS6362

Removing

-- Drain the coolant, refer to COOLANT, DRAINING AND FILLING .

-- Remove the turbocharger, refer to TURBOCHARGER, REMOVING AND INSTALLING .

-- Remove the intake manifold, refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- Remove the camshafts, refer to CAMSHAFT, REMOVING AND INSTALLING .

Left Cylinder Head:

Fig 1: Identifying Clamp

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp -1- and remove the coolant hose.

-- Remove the union nut -left arrow- and then remove the high pressure line -1-.

Fig 2: High Pressure Line And Union Nut

Courtesy of AUDI OF AMERICA, LLC

Right Cylinder Head:

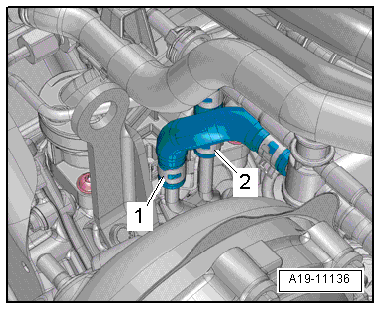

Fig 3: Hose Clamp, Coolant Hoses & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front coolant pipe, refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .

-- Loosen hose clamp -1- and lift the clamp -2- to remove the coolant hoses.

-- Remove the union nut -right arrow- and then remove the high pressure line -1-.

Fig 4: High Pressure Line And Union Nut

Courtesy of AUDI OF AMERICA, LLC

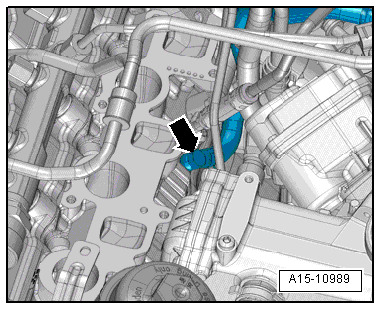

-- Remove the banjo bolt -arrow-.

Fig 5: Identifying Banjo Bolt

Courtesy of AUDI OF AMERICA, LLC

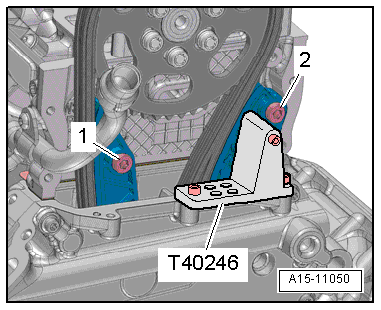

-- Remove the guide pins for the glide track -1- and for the tensioning rail -2-.

Fig 6: Locating Guide Pins For Glide Track And Tensioning Rail

Courtesy of AUDI OF AMERICA, LLC

Continued for Both Sides, refer to "Loosen the Cylinder Head Bolts ".
