Right Cylinder Head Cover, Removing And Installing, Vehicles Engine Code CPNB: Installing

WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Tightening specifications:

Refer to Figure.
Refer to OVERVIEW - TURBOCHARGER .

NOTE:

Replace any bolts that were tightened with an additional turn.

Replace the O-rings.

Replace the cylinder head seal if it is damaged.

-- Clean any oil or grease off the sealing surfaces.

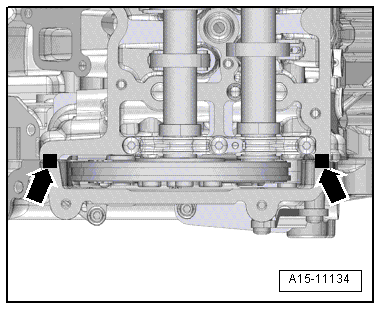

-- Apply a sealant bead -arrows- to both the cylinder head transition and the timing chain guard lower section.

Fig 1: Applying Sealant Bead

Courtesy of AUDI OF AMERICA, LLC

Sealant bead thickness: approximately 2 mm

-- Tighten cylinder head cover bolts, refer to Figure.

-- Install the fuel injectors, refer to FUEL INJECTORS, REMOVING AND INSTALLING .

-- Install the fuel rail, refer to HIGH PRESSURE RESERVOIR (RAIL), REMOVING AND INSTALLING .

-- Install the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Perform a leak test on the fuel system, refer to FUEL SYSTEM LEAK TEST .
