Right Cylinder Head Cover, Removing And Installing, Vehicles Engine Code CGQB: Removing

WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the fuel rail on the right side, refer to HIGH PRESSURE RESERVOIR (RAIL), REMOVING AND INSTALLING .

-- Remove the fuel injectors on the right side, refer to FUEL INJECTORS, REMOVING AND INSTALLING .

-- Disconnect the connector -3- from the Camshaft Position Sensor -G40- -2- and free up the wiring harness from the cylinder head cover with the Pry Lever 80-200.

Fig 1: Camshaft Position Sensor, Bolt And Connector

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -item 1-.

CAUTION:

Depending on the vehicle equipment level and market-specific crankcase ventilation hose may be used, which cannot be removed from the cylinder head cover without being destroyed. For these version the crankcase ventilation hose can only be separated at the air guide hose connection.

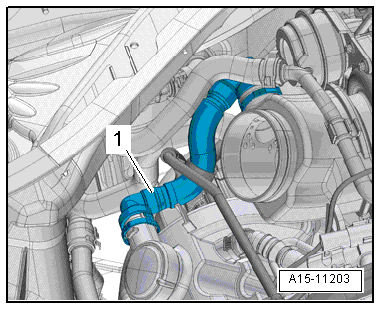

-- Press the release buttons and remove the crankcase ventilation hose -1-.

Fig 2: Identifying Crankcase Ventilation Hose

Courtesy of AUDI OF AMERICA, LLC

-- Free up the vacuum lines.

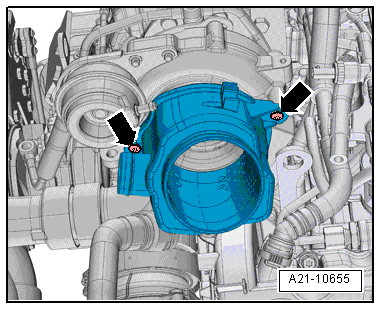

Fig 3: View Of Support Peice At Turbocharge

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and then remove the support from the turbocharger.

-- Press the release buttons and remove the crankcase ventilation hose -arrow-.

Fig 4: Right Cylinder Head Cover - Loosening And Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolts in sequence -7 to 1-.

-- Remove the bolts and the cylinder head cover.
