Overview - Drive Axle With 89 Mm Outer CV Joint And 100 Mm Inner CV Joint: Notes

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

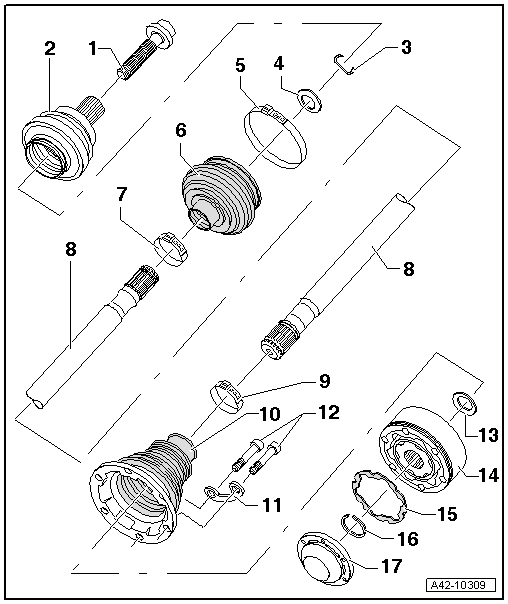

Fig 1: Overview Of Drive Axle With 89 Mm Outer CV Joint And 100 Mm Inner CV Joint
GWWA42-10309Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
  2. Outer CV Joint
    • Outer diameter: 89 mm
    • Replace only as a complete unit.
    • Checking, refer to OUTER CV JOINT, CHECKING .
    • Removing, refer to 89 MM OR 94 MM OUTER CV JOINT, REMOVING AND INSTALLING .
    • Installing: Drive onto shaft with plastic mallet until the compressed circlip seats.
    • Circlip must lie in joint chamfer when guiding in, guide with pliers if necessary.
    • Grease quantity and type, refer to GREASE QUANTITY AND TYPE .
    • The protective boot/outer CV joint sealing surfaces must be free of grease when installing.
    • When installing the joint on the profile shaft, the splines on the profile shaft must be lightly coated with grease used in joint.
  3. Circlip
    • Always replace
    • Allocate Circlip.
    • Insert into ring groove of shaft before installation (not visible on installed joint)
  4. Plate Spring
  5. Clamp
  6. CV boot for Outer CV Joint
    • Without vent hole
    • Check for tears and chafing; replace if necessary
    • Check the outer CV joint if damaged, refer to OUTER CV JOINT, CHECKING .
    • The protective boot/outer CV joint sealing surfaces must be free of grease when installing.
    • The protective boot/drive axle sealing surfaces must be free of grease when installing.
  7. Clamp
  8. Drive Axle
  9. Clamp
  10. Protective Boot for Inner CV Joint with Cap
    • Without vent hole
    • Carefully remove the cap using a drift, replace if damaged.
    • Check the inner CV joint if damaged, refer to INNER CV JOINT, CHECKING .
    • The sealing surfaces on the protective boot/inner CV joint must be free of grease when installing.
    • The protective boot/drive axle sealing surfaces must be free of grease when installing.
    • Before mounting on the CV joint, coat the sealing surface with Sealant, refer to 100 MM OR 107 MM INNER CV JOINT, INSTALLING .
    • Align the cap with the threaded holes.
  11. Backing Plate
  12. Bolt
    • 20 Nm +90°
    • M 8
    • Always replace if removed
  13. Plate Spring
  14. Inner CV Joint
    • Outer diameter: 100 mm
    • Replace only as a complete unit.
    • Checking, refer to INNER CV JOINT, CHECKING .
    • Grease quantity and type, refer to GREASE QUANTITY AND TYPE .
    • The adhesive surfaces on the cover/inner CV joint and protective boot/inner CV joint must be free of grease when installing.
    • When installing the joint on the profile shaft, the splines on the profile shaft must be lightly coated with grease used in joint.
  15. Seal
    • Always replace if removed
    • The adhesive surface on the CV joint must be free of oil and grease.
  16. Circlip
    • Remove and install using commercially available locking ring pliers.
    • Always replace if removed
  17. Cover
    • Carefully remove the cover using a drift, replace if damaged.
    • The sealing surfaces on the cover/inner CV joint must be free of grease when installing.
    • Align cover to screw holes
