Secondary Air Injection Solenoid Valve -N112-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the heat shield -1-.

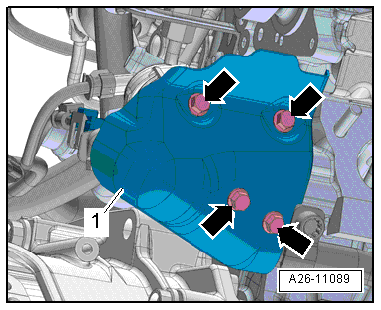

Fig 1: Identifying Heat Shield & Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1-.

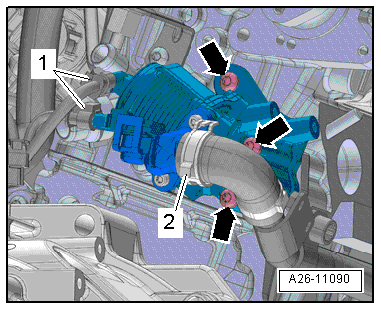

Fig 2: Identifying Secondary Air Injection (AIR) Solenoid Valve -N112, Bolts & Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp -2-.

-- Remove the bolts -arrows- and then pull the Secondary Air Injection Solenoid Valve -N112- off the secondary air injection hose.
