Secondary Air Injection Sensor 1 -G609-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

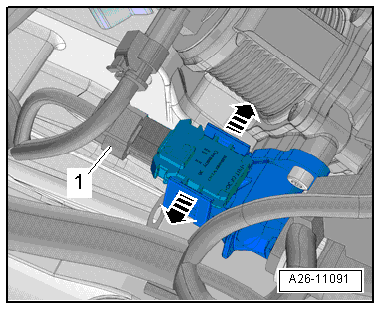

Fig 1: Identifying Secondary Air Injection (AIR) Sensor 1 -G609
GWWA26-11091Courtesy of AUDI OF AMERICA, LLC

-- Open the retainers -arrows- and remove Secondary Air Injection Sensor 1 -G609-.
