Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right front wheel housing liner, refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Disconnect the connector -2-.

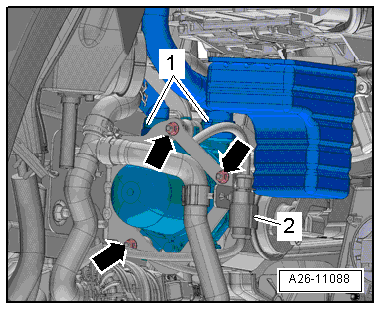

Fig 1: Identifying Connector -2-, Secondary Air Hoses -1- & Nuts -Arrows-
GWWA26-11088Courtesy of AUDI OF AMERICA, LLC

-- Press the release buttons and remove the secondary air hoses -1-.

-- Remove the nuts -arrows- and the Secondary Air Injection Pump Motor -V101-.
