Overview - Muffler Assembly, Hybrid Vehicles

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The exhaust manifold and turbocharger are one component; Removing and Installing, refer to TURBOCHARGER, REMOVING AND INSTALLING .

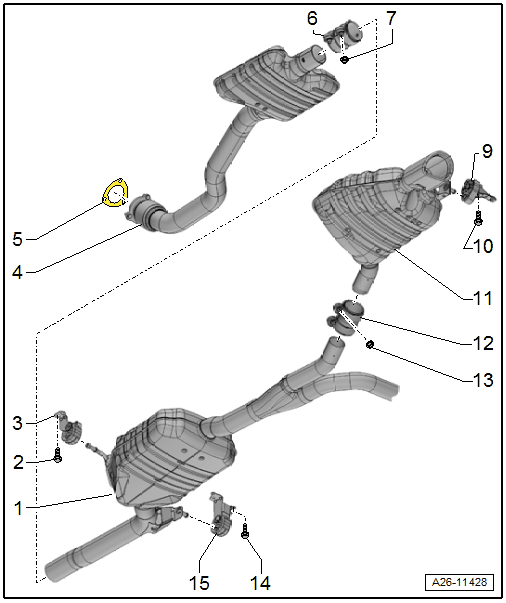

Fig 1: Overview - Muffler Assembly (Hybrid Vehicles)

Courtesy of AUDI OF AMERICA, LLC

Center Muffler
- Original equipment as one unit with rear muffler. For repairs, replace each separately
- Separating point, refer to EXHAUST PIPES/MUFFLERS, SEPARATING .
- Align the exhaust system free of tension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Bolt
- Tightening Specification: 23 Nm
Suspended Mount
- Replace if damaged.
- Check pretension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Front Muffler
- With a flex joint
  CAUTION:
  Danger of damaging the decoupling element.
  - Decoupling element must not be bent more than 10°.
  - Do not load decoupling element on cable.
  - Do not damage wire mesh at decoupling element.
- Removing and installing, refer to FRONT MUFFLER, REMOVING AND INSTALLING HYBRID VEHICLES .
- Align the exhaust system free of tension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Seal
- Replacing
Front Clamping Sleeve
- Before tightening, align exhaust system free of tension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installed position, refer to Figure
- Tighten bolts evenly
Nut
- Tightening Specification: 23 Nm
Suspended Mount
- Replace if damaged.
- Check pretension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Bolt
- Tightening Specification: 23 Nm
Rear Muffler
- Original equipment as one unit with center muffler. For repairs, replace each separately
- Separating point, refer to EXHAUST PIPES/MUFFLERS, SEPARATING .
- Depending on the version, with a vacuum-controlled exhaust flap or Exhaust Door Control Unit -J883-
- The vacuum-controlled exhaust flap cannot be replaced separately.
- Exhaust Door Control Unit -J883-, Removing and Installing, refer to Exhaust Door Control Unit -J883-, REMOVING AND INSTALLING
- Align the exhaust system free of tension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
Rear Clamping Sleeve
- Before tightening, align exhaust system free of tension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .
- Installed position, refer to Figure
- Tighten bolts evenly
Nut
- Tightening Specification: 23 Nm
Bolt
- Tightening Specification: 23 Nm
Suspended Mount
- Replace if damaged.
- Check pretension, refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .

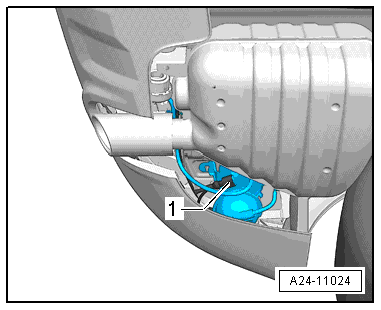

Fig 2: Exhaust Door Valve 1 -N321- -1-

Courtesy of AUDI OF AMERICA, LLC

Through MY 2012 Exhaust Door Valve 1 -N321- with vacuum controlled exhaust flap.

Fig 3: Exhaust Door Control Unit -J883- - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

From MY 2013 Exhaust Door Control Unit -J883-.

NOTE:

Replace the nuts.

-- Tighten the nuts -3- to 3 Nm.
