Front Muffler, Removing And Installing, Non-Hybrid Vehicles: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear noise insulation, refer to OVERVIEW - NOISE INSULATION .

Front Muffler Version 1

Fig 1: Identifying Front Muffler

Courtesy of AUDI OF AMERICA, LLC

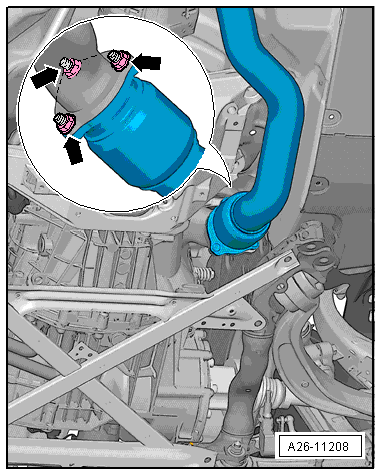

-- Remove the nuts -arrows-.

Front Muffler Version 2

Fig 2: Identifying Nuts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows-.

Continuation for All Vehicles

Fig 3: Identifying Clamping Sleeve Components

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of damaging the decoupling element.

Decoupling element must not be bent more than 10°.
Do not load decoupling element on cable.
Do not damage wire mesh at decoupling element.

-- Loosen the threaded connections -arrows-, slide the clamping sleeve to the rear and remove the front muffler.
