Fuel Delivery Rate, Checking, Vehicles With 2.0L TFSI Engine Through My 2012

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Injection Rate Comparison Meter Kit - Remote Cable VAG 1348/3A with Injection Rate Kit - Remote Cable VAG 1348/3-3.
Connector Test Set VAG1594D
Pressure Tester Kit VAS6550 with Pressure Tester Kit - Hose 1 VAS6550/1 and Pressure Tester Kit - Hose 2 VAS6550/2
Measuring container, fuel-resistant

Procedure

Fig 1: Identifying Locking Flange Cover & Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Follow all test requirements, refer to TEST CONDITIONS .

-- Remove 1/3 of the rear seat, refer to REAR SEAT, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the sealing flange cover -1-.

-- Disconnect the connector -1- on the sealing flange.

Fig 2: Identifying Connector -1- On Locking Flange

Courtesy of AUDI OF AMERICA, LLC

-- Push the circlip -1- upward in direction of -arrow A- and squeeze the release in direction of -arrow B-.

Fig 3: Pulling Lock -1- Upward -Arrow A- & Press -Arrow B-

Courtesy of AUDI OF AMERICA, LLC

-- Press on the marked location in direction of -arrow A- and remove the cover -2-.

Fig 4: Pressing On Marked Location -Arrow A- & Remove Cover -2-

Courtesy of AUDI OF AMERICA, LLC

-- Release the latch in direction of -arrow B- and open the cover -1-.

-- Connect the Injection Rate Comparison Meter Kit - Remote Cable VAG1348/3A using the Injection Rate Kit - Remote Cable VAG1348/3-3 and cable from the Connector Test Set VAG1594D to the terminal -1-.

Fig 5: Connecting - VAG 1348/3A- Using - VAG 1348/3-3- & Cable From - VAG 1594C- To Terminal -1-

Courtesy of AUDI OF AMERICA, LLC

-- 2. Tape the Injection Rate Kit - Remote Cable VAG1348/3-3 with insulating tape -arrow-.

-- Connect the connector terminal -5- to the chassis ground with an adapter cable from the Connector Test Set VAG1594D.

-- Place the switch for the Injection Rate Comparison Meter Kit - Remote Cable VAG1348/3A toward front in engine compartment.

-- Connect the alligator clip to the Battery Jump Start Terminal -U6- -A- in the Terminal 30 Wire Junction 2 -TV22- in the plenum chamber.

-- Open the fuel filler door.

Fig 6: Identifying Fuel Filler Cap (Fuel Cap)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fuel filler cap -arrow-.

Fig 7: Identifying Fuel Line

Courtesy of AUDI OF AMERICA, LLC

WARNING:

There is a risk of injury because the fuel is under high pressure.

To reduce pressure in fuel system, lay a clean cloth around the connector and carefully loosen connector.

-- Press the release ring -1- and disconnect the fuel line -2-.

-- Connect the Pressure Tester Kit VAS6550 with the Pressure Tester Kit - Hose 2 VAS6550/2 to the fuel supply line.

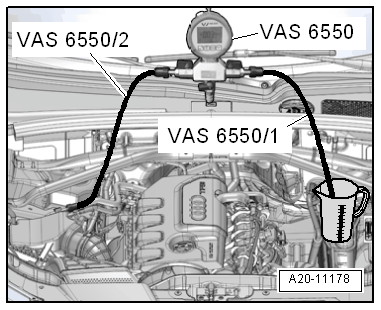

Fig 8: Connecting - VAS 6550/1- & Hold It Inside A Fuel Resistant Container

Courtesy of AUDI OF AMERICA, LLC

-- Connect the Pressure Tester Kit - Hose 1 VAS6550/1 and hold the hose in a fuel-resistant measuring container.

Fig 9: Identifying Pressure Tester VAS 6550 And Shut-Off Valve -B- (Closed)

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of fuel leak.

Make sure that the drain -C- is closed.
The lever is perpendicular to the direction of flow.

-- Open the shut-off valves -A and B-.

The levers point in the direction of flow.

NOTE:

In order to measure the fuel delivery rate, there must be an initial pressure inside the fuel line against which the fuel pump must work during the measuring. Adjust the initial pressure using the remote control as follows.

-- Press the switch in the remote control to create an initial pressure within the fuel system: the fuel pump starts and close the shut-off valve -B- on the pressure gauge slowly.

Specified value: 4 bar (58 psi) pressure.

-- From this point on do not move position of shut-off valve.

-- Empty measuring container.

-- Press the remote control switch for 15 seconds.

-- Compare quantity of fuel delivered with minimum delivery rate in diagram (cm³ /15 s).

Fig 10: Identifying Fuel Delivery Rate Diagram

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Voltage at fuel pump with engine stopped and fuel pump running is approximate. 2 volts less than battery voltage.

If minimum delivery quantity is not obtained, the following malfunctions may be present:

The fuel lines are pinched.
The fuel filter is clogged.
Transfer Fuel Pump -G6- is faulty.

Assembly is performed in the reverse order of disassembly, noting the following:

-- Attach the fuel line so that it clicks into place.

-- Press the fuel line on again and pull to make sure the connection is engaged correctly.
