Fuel Tank Pressure Sensor -G400-, REMOVING AND INSTALLING, AUDI Q5 HYBRID: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Follow all safety precautions, refer to SAFETY PRECAUTIONS .

-- Follow the rules for clean working conditions, refer to CLEAN WORKING CONDITIONS .

-- Remove the left rear wheel.

-- Remove the left rear wheel housing liner, refer to WHEEL HOUSING LINER .

-- Press the release button and remove the vent line -arrow-.

Fig 1: Removing/Installing Vent Line

Courtesy of AUDI OF AMERICA, LLC

-- Release the connector safety catch and disconnect the connector -1-.

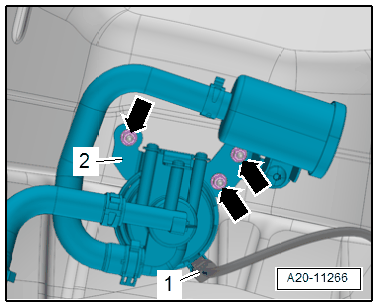

Fig 2: Removing Fuel Tank Pressure Sensor -G400- And Air Filter

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- from the bracket.

-- Unclip the vent line from the mounts.

-- Remove bracket -2- with Fuel Tank Pressure Sensor -G400- and air filter.

-- Loosen the clamp to remove the vent hoses -1 and 2-.

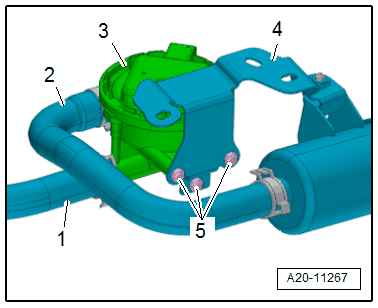

Fig 3: Removing Fuel Tank Pressure Sensor - G400- -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -5-.

-- Remove Fuel Tank Pressure Sensor - G400- -3- from the bracket -4-.
