Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

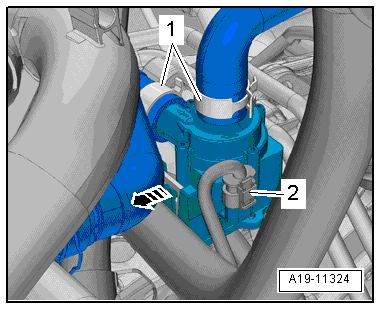

-- Disconnect the connector -2-.
-- Loosen the hose clamp -1-, then clamp off the coolant hoses with the Hose Clamps - Up To 25mm 3094 and remove.
-- Open the retainer -arrow-, remove the Coolant Recirculation Pump -V50- upward from the bracket.
