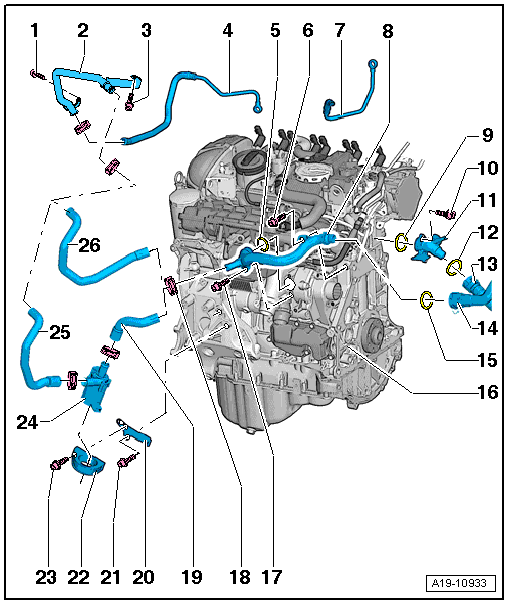

Overview - Coolant Pipes, Non-Hybrid Vehicles
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Arrows on coolant pipes and coolant hoses must line up across from each other.
- Bolt
- 6 Nm
- Front Coolant Pipe
- Removing and installing, refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- 6 Nm
- Coolant Supply Line
- From the turbocharger
- Overview, refer to OVERVIEW - TURBOCHARGER
- O-Ring
- Replacing
- Bolt
- 9 Nm
- Coolant Supply Line
- To turbocharger
- Overview, refer to OVERVIEW - TURBOCHARGER
- Small coolant pipe
- Different versions. For the correct allocation, refer to Parts .
- Removing and installing, refer to SMALL COOLANT PIPE, REMOVING AND INSTALLING .
- O-Ring
- Replacing
- Bolt
- 9 Nm
- Coolant Connection
- O-Ring
- Replacing
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the coolant connection, refer to Figure
- Coolant Hose
- Lift the retaining clamp to remove
- Connect to the coolant pipe, refer to Figure
- O-Ring
- Replacing
- Engine
- Bolt
- 9 Nm
- Hose Clamp
- Coolant Hose
- Only hot climate version
- Bracket
- Only hot climate version
- Bolt
- 9 Nm
- Only hot climate version
- Bracket
- Only hot climate version
- Bolt
- 4 Nm
- Only hot climate version
- After-Run Coolant Pump -V51-
- For non hybrid vehicles with all engine codes except CDZA
- For the correct allocation, refer to appropriate SYSTEM WIRING DIAGRAMS information.
- Removing and installing, refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING, NON-HYBRID VEHICLES WITH ALL ENGINE CODES EXCEPT CDZA .
- Coolant Hose
- Only hot climate version
- Coolant Hose
- Without hot climate version
