Impact Member Mount, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

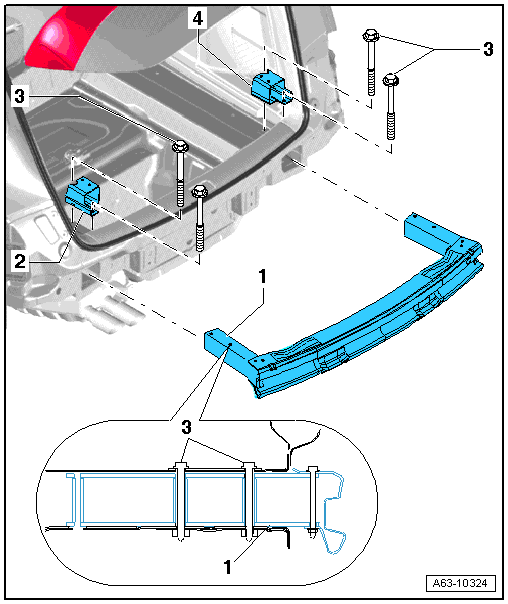

Fig 1: Identifying Member Mount

Courtesy of AUDI OF AMERICA, LLC

Impact Member Mounts
- Removing:
  -- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

  -- Remove the tie downs. Refer to TIE DOWN, REMOVING AND INSTALLING .

  -- Loosen the left and right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

  -- Remove the bolts -3- and remove the impact member and mounts.
Left Console
Bolt
- 40 Nm
Right Console
