Bumper Guide Pieces, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

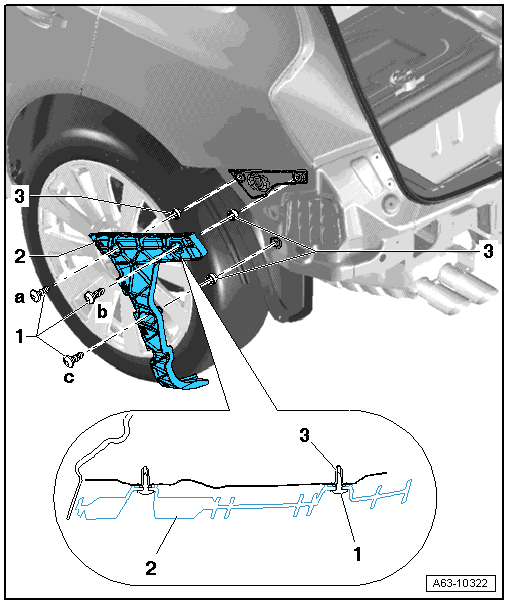

Fig 1: Identifying Guide Piece

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 1.5 Nm
Guide Piece
- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
  -- When installing, tighten in sequence >>a; b and c<<.
Clip
