Overview - Impact Absorber, Vehicles From My 2013
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Note the following if the vehicle is equipped with adaptive cruise control (ACC).
- If modifications were made to the impact absorber bracket or the bracket for the Distance Regulation Control Module - J428-, the adaptive cruise control must be recalibrated. Refer to ADAPTIVE CRUISE CONTROL, GENERAL INFORMATION .

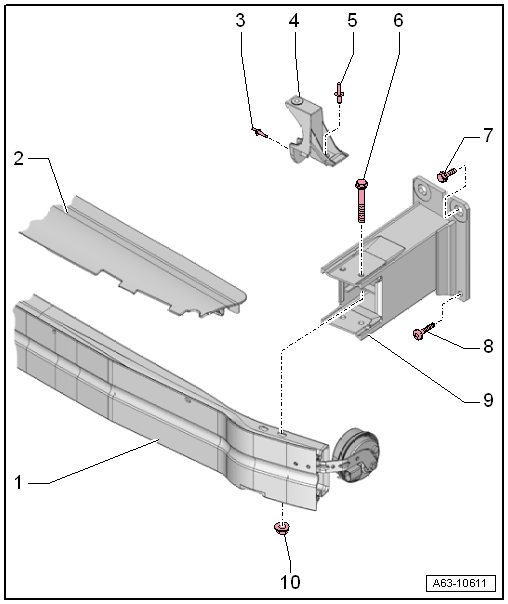

- Impact Member
- Removing and installing. Refer to IMPACT ABSORBER, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2012 .
- Cover
- For impact member
- Rivet
- Support Piece
- For the headlamp housing mount
- Removing and installing. Refer to HEADLAMP HOUSING MOUNT SUPPORT, REMOVING AND INSTALLING .
- Rivet
- Bolt
- Quantity: 2
- Bolt
- 55 Nm
- Quantity: 3
- Bolt
- 4 Nm
- Secures the lock carrier
- Impact Member Bracket
- Removing and installing. Refer to IMPACT MEMBER BRACKET, REMOVING AND INSTALLING .
- Nut
- 20 Nm
- Quantity: 2
