Molded Foam Piece

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Removing

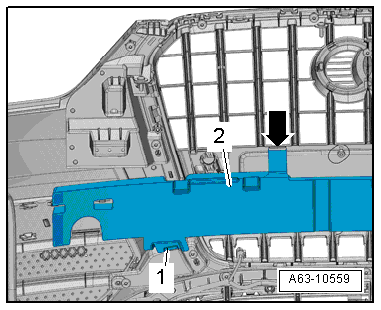

Fig 1: Removing Molded Foam Piece

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Audi Q5 S line/SQ5, free up the wiring harness.

-- Guide the molded foam piece -2- at the top out of the bracket -arrow- and at the bottom out of the holder -1-.

Installing

Install in reverse order of removal. Note the following:

-- Install the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
