Headlamp Washer System Spray Nozzle Cover
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
Removing

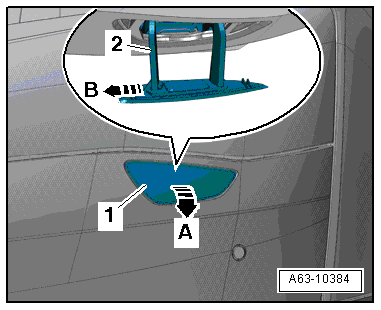

-- Fold the washer nozzle cover -1- upward -arrow A-.
-- Pry off the spray nozzle cover using a screwdriver on the inner side -2- and disengage it at the opposite side -arrow B-.
Installing
Install in reverse order of removal. Note the following:
-- Press the spray nozzle cover on until it engages audibly.
