Auxiliary Components Bracket, Removing And Installing, Non-Hybrid Vehicles With The Engine Code CDZA: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Reduce pressure by covering coolant reservoir cap with a cloth and carefully opening.

-- Drain the coolant, refer to COOLANT, DRAINING AND FILLING, NON-HYBRID VEHICLES .

Fig 1: Rotating Belt Tensioner

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

-- To release ribbed belt tension, rotate tensioner in -direction of arrow-.

-- Secure the tensioning system using Locking Pin T10060A.

-- Remove the ribbed belt.

-- Disconnect the connectors -2 and 3- from the Oil Pressure Switch - F22- and Reduced Oil Pressure Switch - F378-.

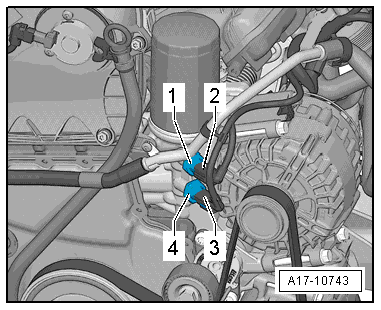

Fig 2: Identifying Connectors From Oil Pressure Switch And Reduced Oil Pressure Switch

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -1 and 4-.

-- Loosen the hose clamps -arrows- and remove the air guide hose.

Fig 3: Identifying Air Intake Hose Components

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect and free up the connector from the Charge Air Pressure Sensor -G31- -item 1-.

-- Remove the bolts -1- and -2- and pivot the left coolant pipe upward.

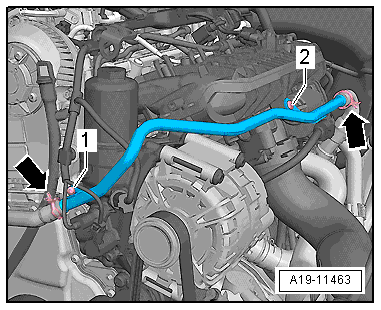

Fig 4: Left Coolant Pipe Fasteners

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Disregard the -arrows-.

-- Remove the generator, refer to GENERATOR, REMOVING AND INSTALLING .

-- Disconnect solenoid clutch electrical connector -1- on A/C compressor.

Fig 5: A/C Compressor Bolts And Solenoid Clutch Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Refrigerant can cause serious personal injury.

Do not open the A/C system refrigerant circuit.

-- Remove A/C compressor bolts -arrows-.

CAUTION:

Risk of damaging refrigerant lines and hoses.

Do not stretch, kink or bend refrigerant lines and hoses.

-- Tie up the compressor with the refrigerant lines attached to the longitudinal member.

-- Remove the oil filter, refer to 4-CYLINDER 2.0 TFSI GASOLINE ENGINE .

NOTE:

Place a cloth under the accessory assembly bracket to collect leaking engine oil.

Fig 6: Accessory Assembly Bracket Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 5- and pull off the accessory assembly bracket from the coolant pump housing.
