Tower Brace, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Remove The Tower Brace And Additional Reinforcement:

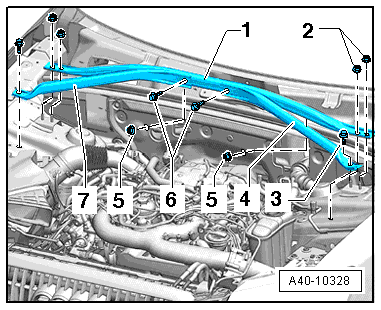

Fig 1: Removing Tower Brace (Sequence 1)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -2-, -5- and the right and left bolts -3- and then remove the tower brace -1-.

Removing The Right Or Left Additional Reinforcements:

Fig 2: Removing Tower Brace (Sequence 2)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -3- and -6- from the additional reinforcement being removed and then remove the reinforcement -4- or -7-.
