Suspension Strut With Mounting Bracket, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

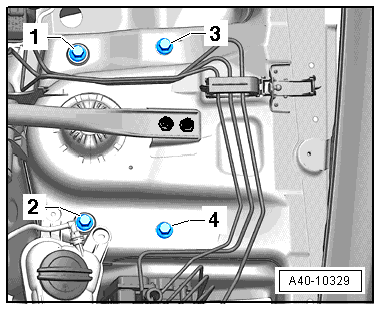

Fig 1: Removing/Installing Upper Suspension Strut Bolts

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

NOTE:

Always observe the tightening sequence for the mounting bracket threaded connection with the suspension strut to the suspension strut tower.

-- Install and tighten the bolts one after the other in the sequence -1, 2, 3- and -4-.

Tightening specifications, refer to OVERVIEW - SUBFRAME, CROSSBRACE, STABILIZER BAR, COUPLING ROD AND SUBFRAME SHIELD .

Tightening specifications, refer to OVERVIEW - SUSPENSION STRUT WITH MOUNTING BRACKET, SHOCK ABSORBER FORK, UPPER CONTROL ARM AND TOWER BRACE .

Tightening specifications, refer to OVERVIEW - CONTROL ARM, BALL JOINT, GUIDE LINK AND LEVEL CONTROL SYSTEM SENSOR .

Tightening specifications, refer to OVERVIEW - WHEEL BEARING HOUSING AND WHEEL BEARING UNIT .

NOTE:

Push the upper control arms down as far as possible while tightening the bolts!

-- Tighten the bolting -1-.

Fig 2: Identifying Booth Joint Pins In Upper Control Arm

Courtesy of AUDI OF AMERICA, LLC

NOTE:

On vehicles with electronically controlled damping, make sure the T-pin -arrow- fits into the groove in the shock absorber fork when being installed.

Fig 3: Insert 3424 Into Slot Of Wheel Bearing Housing

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Bonded rubber bushings have a limited range of motion. Only tighten suspension screws when vehicle is in curb weight or control position.

-- Wheel bearing, lifting to curb weight position on vehicles with coil springs, refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING .

-- On vehicles with automatic headlamp range control system, perform a basic setting on the headlamps, refer to HID HEADLAMP, ADJUSTING, ADJUSTING, USA VEHICLES or HID HEADLAMPS, ADJUSTING, REST-OF-WORLD VEHICLES .

-- If the vehicle level sensor was removed and installed on a vehicle with electronically controlled damping or if the linkage was loosened, the control position must be programmed again, refer to CONTROL POSITION, REPROGRAMMING USING Vehicle Diagnostic Tester Vehicle Diagnostic Tester.

-- If the control position was reprogrammed on vehicles with lane assist, the Directional Stabilization Assistance Control Module -J759- must be calibrated again, refer to CALIBRATION PROCEDURE .

-- Tighten the wheel, wheel bolt tightening specification: 140 Nm. Refer to AUDI SQ5 TYPE 8R, MY 2012 - 2015 .

-- To determine if an axle alignment is required, see Table, refer to WHEN A VEHICLE ALIGNMENT IS NECESSARY .
