Printed Circuit Board, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Do not touch the flasher.

-- On the right: remove the air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

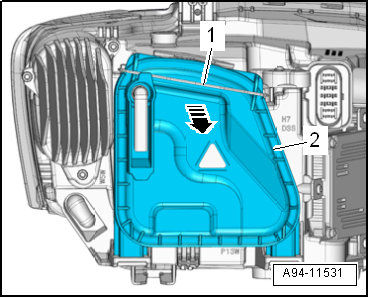

Fig 1: Removing Headlight Access Cover

Courtesy of AUDI OF AMERICA, LLC

-- Open the clip -1-.

-- Pivot the housing cover -2- to the side -arrow-.

-- To remove the expanding clips -arrows-, carefully push the pin -1- to dimension -x- until it audibly engages into the expanding clip -arrow A-.

Fig 2: Removing Expanding Clips At Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

Dimension -x- = 5 mm.

-- Remove the unlocked expanding clip -2- and the pin.

-- Lift the lock carrier cover -3- and engage it on the radiator grille.

-- Remove bolts -2- and -4-.

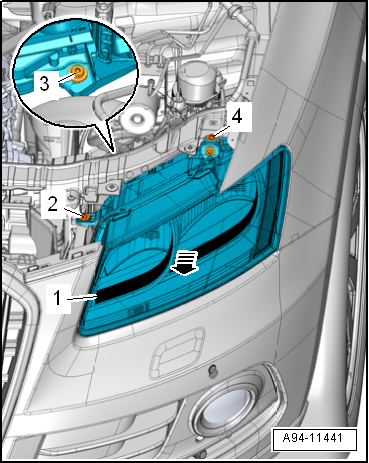

Fig 3: Pushing Headlamp Housing Forward

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -3- three turns.

-- Push the headlamp housing -1- forward all the way in direction of -arrow-.

-- Remove the housing cover.

NOTE:

If the headlamp housing cannot be pushed all the way forward, then the connector must be disconnected.

-- Open the retaining tab -3- and pull the circuit board -2- slightly out from its mount -4-.

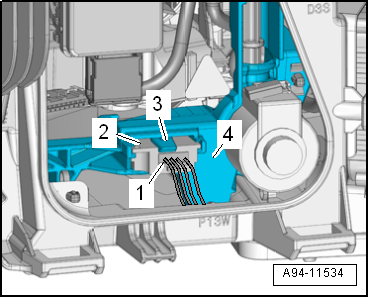

Fig 4: Removing Circuit Board

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the circuit board.
