Headlamp Housing Repair Kit, Installing: Procedure: Notes
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamp with the broken mounting tab, refer to HEADLAMP HOUSING, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2012 .
-- Remove the remains of broken mounting tab on the headlamp housing.

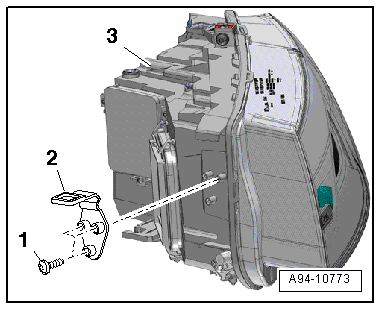

-- Position the repair set mounting tab -2- on the headlamp housing -3- and secure the tab with the bolts -1-.
