Location On Transmission

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2013 Audi S5, 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, and 2009 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For engine codes, transmission allocation, ratios and capacities, refer to [For engine(s) CAUA] Specifications .

-Arrow-, codes, series number and transmission part number; refer to Fig 2.

Fig 1: Identifying Location On Transmission
Courtesy of AUDI OF AMERICA, LLC

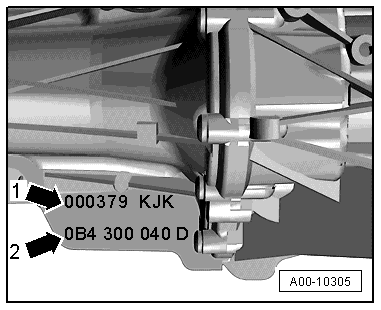

Fig 2: Identifying -Arrow 1- Transmission Codes And Running Transmission Series Numbers

Courtesy of AUDI OF AMERICA, LLC

Example:	001379	KTV
	Series number	Code letters

-Arrow 2- Manual transmission "0B4" with Transmission Part Number, for Example 0B4 300 040 H.

NOTE:

Additional data depend on the manufacturing.

The transmission code letters are also included on the vehicle data labels.
