Overview - Crankcase Ventilation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

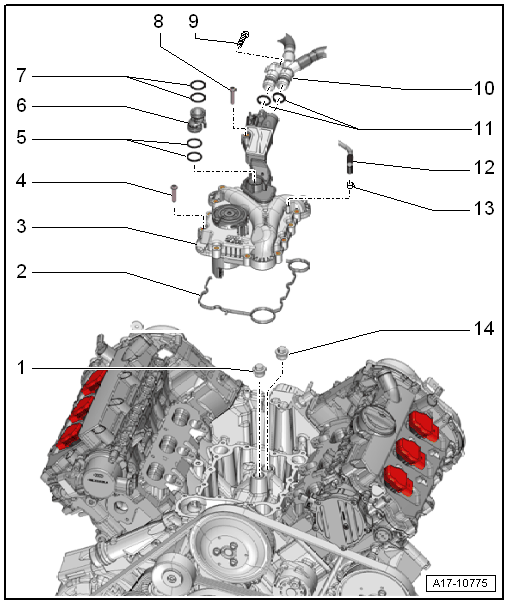

Fig 1: Overview Of Crankcase Ventilation

Courtesy of AUDI OF AMERICA, LLC

Sealing Plug
- 20 Nm
Seal
- Replace
Cover with Oil Separator
- With connection for crankcase ventilation
- Removing and installing, refer to OIL SEPARATOR, REMOVING AND INSTALLING .
Bolt
- 9 Nm
O-Ring
- Replace
- USA vehicles: quantity 2
Connection
- For the crankcase ventilation
- Installed position, refer to Fig 2
O-Ring
- Replace
- USA vehicles: quantity 2
Bolt
- 2.5 Nm
Bolt
- 2.5 Nm
Crankcase Ventilation Hose
- To the cylinder head covers
- Removing and installing, refer to CRANKCASE VENTILATION HOSES, REMOVING AND INSTALLING .
O-Rings
- Replace
Hose for Crankcase Ventilation
- To the air guide pipe
Hose Clamp
Sealing Plug
- 20 Nm

Fig 2: Identifying Crankcase Ventilation Support, O-Rings And Positioning Slot

Courtesy of AUDI OF AMERICA, LLC

-- Install the crankcase ventilation connector -1- with new O-rings into the oil separator cover.

Installed position: the tab -2- must engage into the guide -arrow-.
