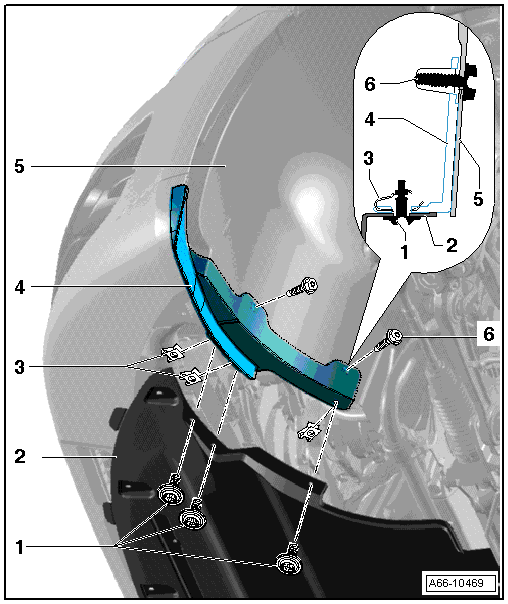

Overview - Front Wheel Spoiler
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Clamping Pin
- Front Noise Insulation
- Spring Nut
- Slide onto the noise insulation.
- Wheel Spoiler
-- Remove the bolts in the wheel housing liner in the spoiler area.
-- Press the wheel housing liner to the side in the spoiler area and loosen the locking pins.
-- Remove the wheel spoiler under the wheel housing liner.
- Wheel Housing Liner
- Bolt
- 1.5 Nm
