Front Wheel Housing Liner, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the Assembly Overview to determine removal and installation of the wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

Special tools and workshop equipment required

Locking Pliers VAS6199

-- Use to loosen the clips on the wheel housing liner.

Release the Clip

-- To remove the clips -3-, unlock the release lever -2- with needle nose pliers in direction of -arrow A- and push it off the pin -1- in direction of -arrow B-.

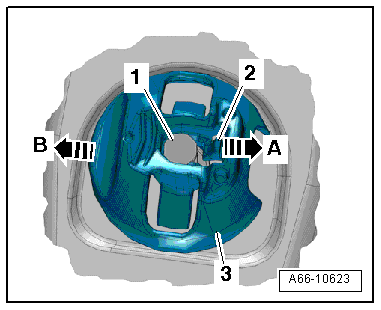

Fig 1: Identifying Clips -3-, Release Lever -2- And Pin -1-

Courtesy of AUDI OF AMERICA, LLC

-- The Locking Pliers VAS6199 may also be alternatively used to release the clips.
