Trailer Hitch, Removing And Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

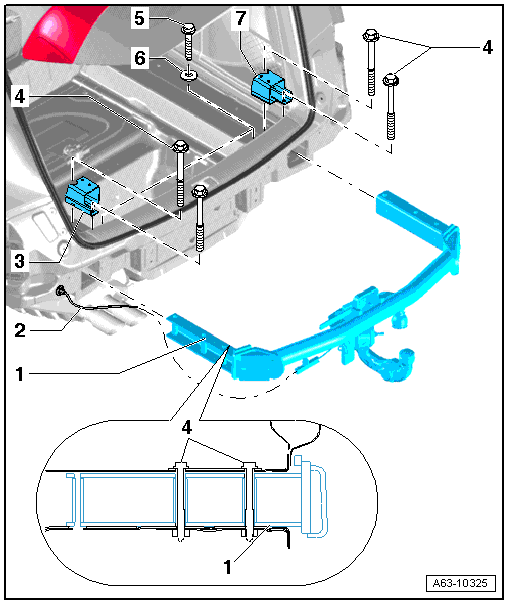

Fig 1: Identifying Trailer Hitch

Courtesy of AUDI OF AMERICA, LLC

Trailer Hitch with Crossmember
- Removing:
  -- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

  -- Remove the tie downs. Refer to TIE DOWN, REMOVING AND INSTALLING .

  -- Loosen the left and right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

  -- Disconnecting the central connector inside the luggage compartment. Refer to Fig 2.

  -- Disengaging the cable for unlocking the trailer hitch from the bracket. Refer to Fig 3

  -- Remove the bolts -3- and pull out the trailer hitch to the rear.
Release Cable
- When installing, be sure to push the grommet correctly into the rear lid end piece.
Left Console
Bolt
- 60 Nm
Bolt
- 60 Nm
Washer
Right Console

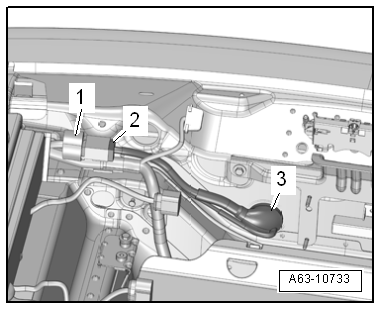

Fig 2: Disconnect the Central Connector for the Trailer Hitch Inside the Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

-- Push back the foam piece -1- and disconnect the central connector -2-.

-- Press the grommet -3- outward.

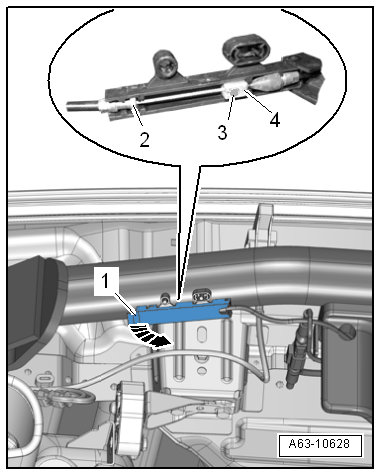

Fig 3: Cable for Unlocking the Trailer Hitch

Courtesy of AUDI OF AMERICA, LLC

-- Unlock the retainers and open the cover -1- -arrow-.

-- Remove the cable bracket -2- from the cable mount.

-- Disengage the cable nipple -3- from the mount -4-.
