Roof Railing, Removing And Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- It is necessary to replace all seals whenever a new roof railing is installed.
- If being re-used, install the nuts and screws with locking compound.
- ROOF RAIL
- Removing:
-- Lower the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .
NOTE:The Roof Rack Recognition Sensor -G625- is located only in the left roof railing.
-- Disconnect the Roof Rack Recognition Sensor - G625- connector.
-- Remove the nuts and screws and remove the roof railing.
- Installing:
-- Adjusting elements must be pushed into the roof and be in the installation position with slight pretension.
-- Place railing on roof and threaded pins through adjusting elements.
- Follow the installation sequence:
-- First tighten the screws and then the nuts to the tightening specification.

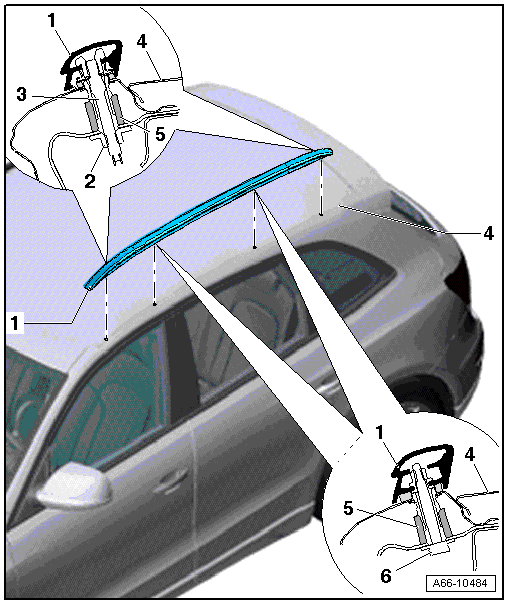

- Removing:
- Threaded Pin
- Pushed into the roof railing at the front and back
- Nut
- Replace. Install new nut with Locking Fluid -D 000 600 A2-.
- 10 Nm
- Roof
- Adjusting Element
- Insert the front adjusting element and both rear adjusting elements into the holes and slide them forward into their installation position.
- Insert the remaining adjusting element (second element shown from the front) into the hole and slide it toward the rear into its installation position.
- Position the adjusting elements so that it makes contact, with light pre-tension of 0.3 Nm.
- Bolt
- 10 Nm
- Replacing, clean any remaining locking compound form the threaded hole with a thread cutter.
Roof Rack Recognition Sensor - G625-
-- The Roof Rack Recognition Sensor -G625- -2- is only installed in the left roof rail and can be replaced. Refer to COMPONENT LOCATION OVERVIEW - ABS/ESP (See Figure 1) .
