Front Emblems, Removing And Installing, Sq5 Name Badge: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

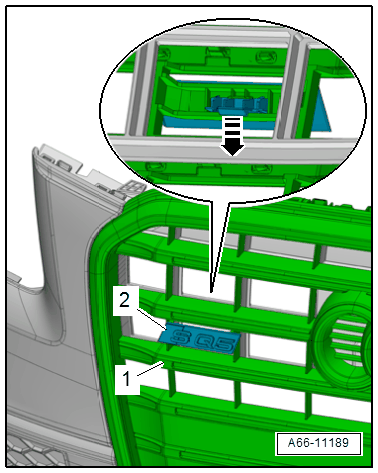

Fig 1: Removing/Installing Front Emblem (SQ5 Name Badge)
GWWA66-11189Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Release the retainer -arrow-.

-- Remove the SQ5 name badge -2- from the radiator grille -1-.
