Dimensions - Rear Lid Name Badges And Emblems

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Press the emblems firmly onto the body according to the dimensions.

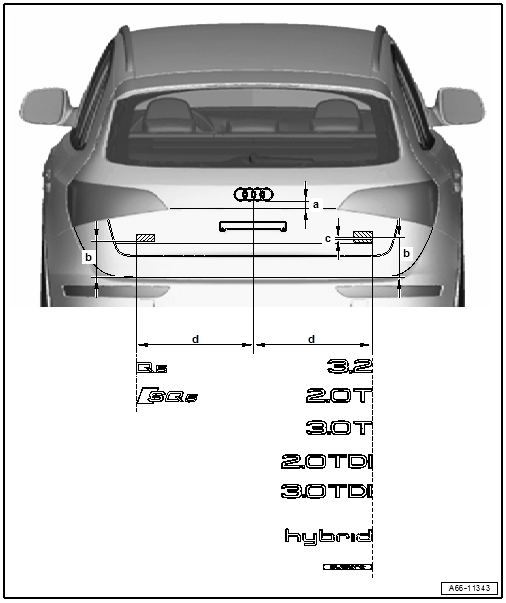

Fig 1: Dimensions For Rear Lid Name Badges And Emblems (1 Of 3)

GWWA66-11343

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 18 mm
Dimension -b- = 176 mm
Dimension -c- = 4 mm
Dimension -d- = 540 mm

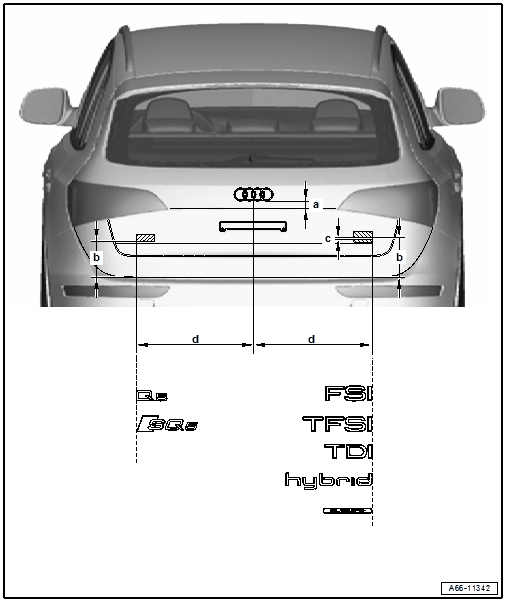

Fig 2: Dimensions For Rear Lid Name Badges And Emblems (2 Of 3)

GWWA66-11342

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 18 mm
Dimension -b- = 176 mm
Dimension -c- = 4 mm
Dimension -d- = 540 mm

Market-Specific Variants

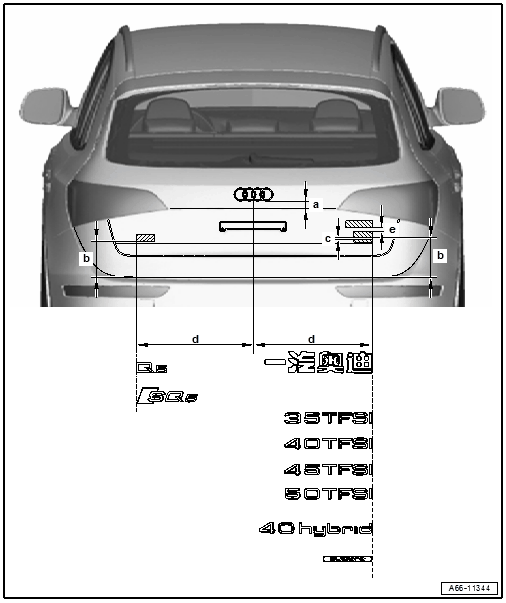

Fig 3: Dimensions For Rear Lid Name Badges And Emblems (3 Of 3)

GWWA66-11344

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 18 mm

Dimension -b- = 176 mm

Dimension -c- = 4 mm

Dimension -d- = 540 mm

NOTE:

Dimension -e- applies only to the emblem for China.

Dimension -e- = 15 mm
