Dimensions - Name Badges And Emblems On Fender

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Press the name badges firmly onto the body according to the dimensions.

Additional lettering, refer to Fig 2

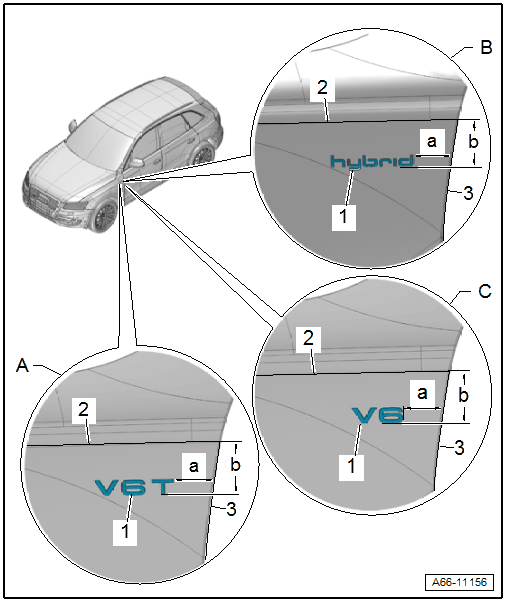

Fig 1: Dimensions - Name Badges And Emblems On Fender (1 Of 2)
GWWA66-11156Courtesy of AUDI OF AMERICA, LLC
  1. A -

    V6T Name Badge

    • Dimension -a- = 55 mm
    • Dimension -b- = 47 mm

    -1- >>V6T<< emblem

    -2- Cover edge in fender

    -3- Cover edge in fender

  2. B -

    Hybrid Name Badge

    • Dimension -a- = 55 mm
    • Dimension -b- = 47 mm

    -1- >>hybrid<< emblem

    -2- Cover edge in fender

    -3- Cover edge in fender

  3. C -

    V6 Name Badge

    • Dimension -a- = 55 mm
    • Dimension -b- = 47 mm

    -1- >>V6<< emblem

    -2- Cover edge in fender

    -3- Cover edge in fender

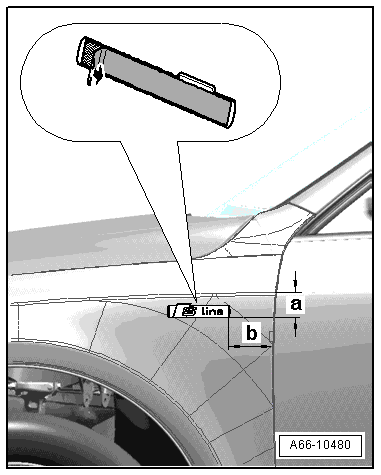

Fig 2: Dimensions - Name Badges And Emblems On Fender (2 Of 2)
GWWA66-10480Courtesy of AUDI OF AMERICA, LLC
