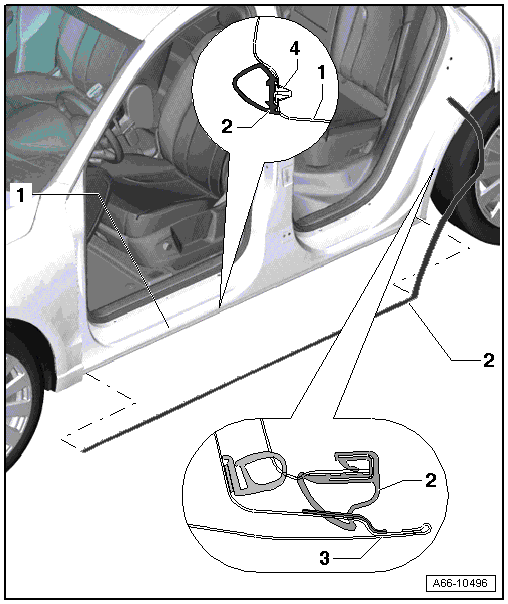

Overview - Sill Panel Seal
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Sill Panel
- Longitudinal Member Seal
- To remove, pull the seal off the clips on the sill panel starting at the front.
- The clips must be removed from the longitudinal member.
- If the same seal is being installed again, then the clips must be inserted into the seal first.
- Install the seal starting at the front and push it onto the body flange on the wheel housing.
- Push it in under the side window seal on the >>C-pillar<< and attach it to the side panel.
- Door
- Clip
- Install the clip into the seal before assembling.
