Front Passenger Seat Occupied Sensor -G128-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture VAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Separate the cover from the upholstery (seat pan). Refer to LOWER SEAT FRAME COVER AND CUSHION, SEPARATING, STANDARD, COMFORT, FOLDING SEAT .
NOTE:
Remove only enough of the cushion so that the seat occupied sensor is accessible.
-- Disconnect the seat occupied sensor connector.
-- Carefully lift the seat heating element, if applicable.

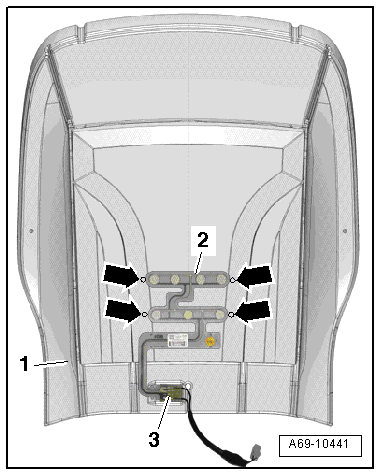

-- Carefully remove seat occupant sensor -2- including circuit board -3- from seat cushion -1-.
NOTE:
Ignore the -arrows-.
